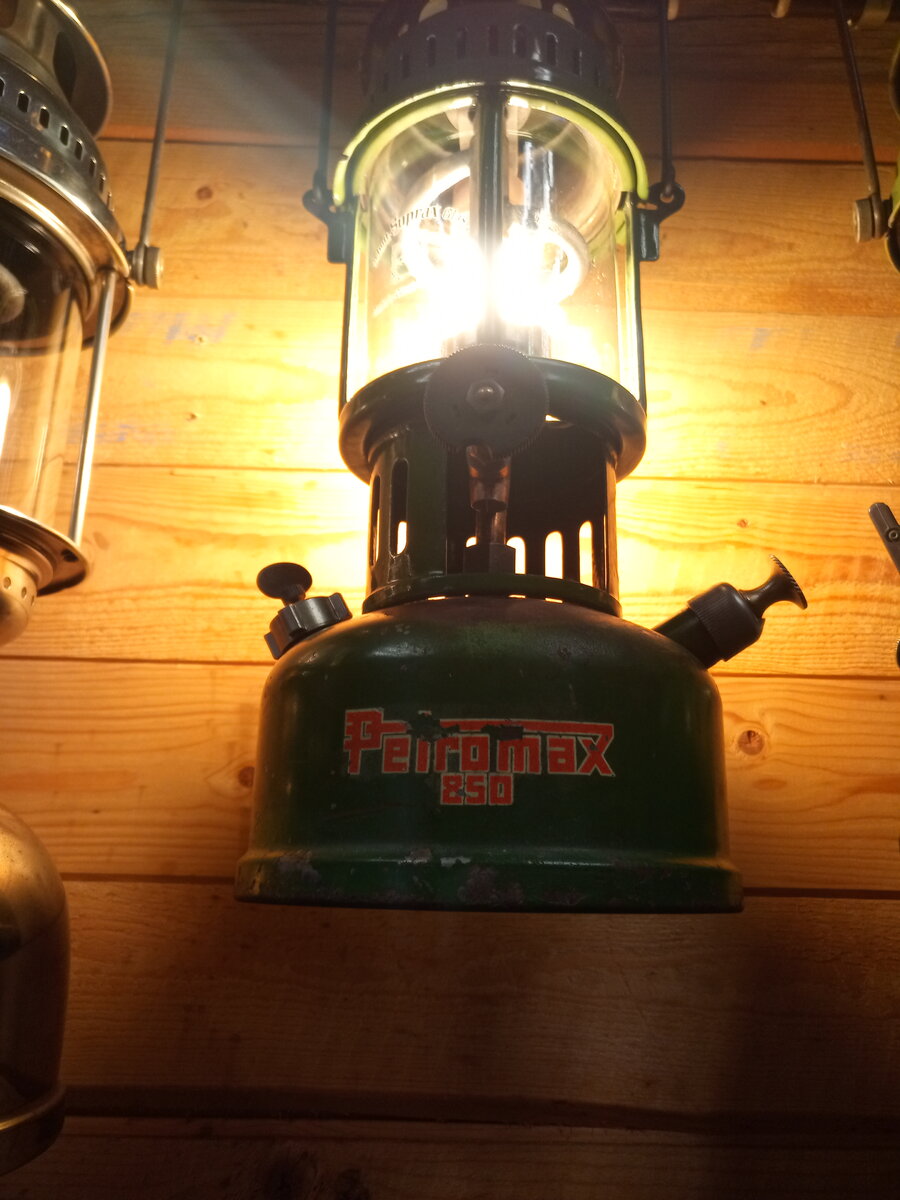

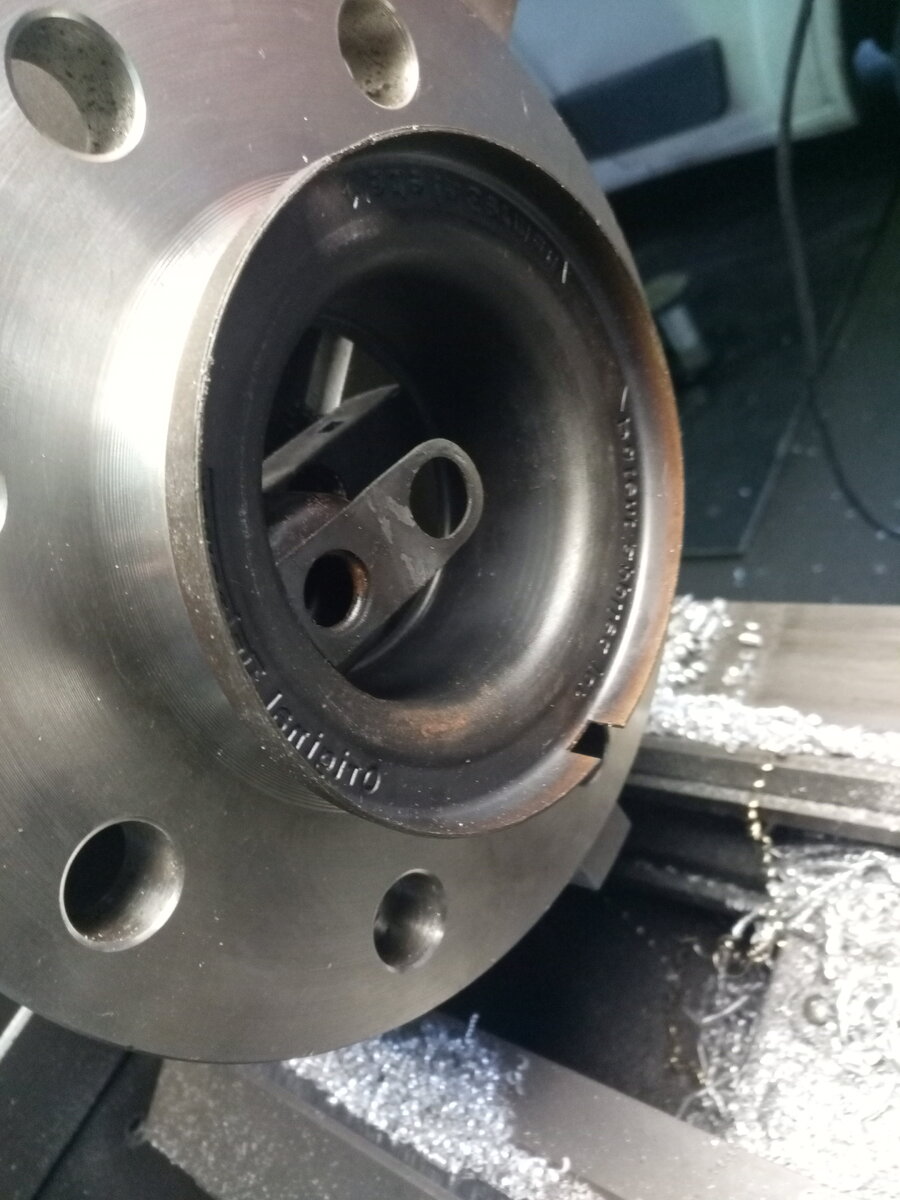

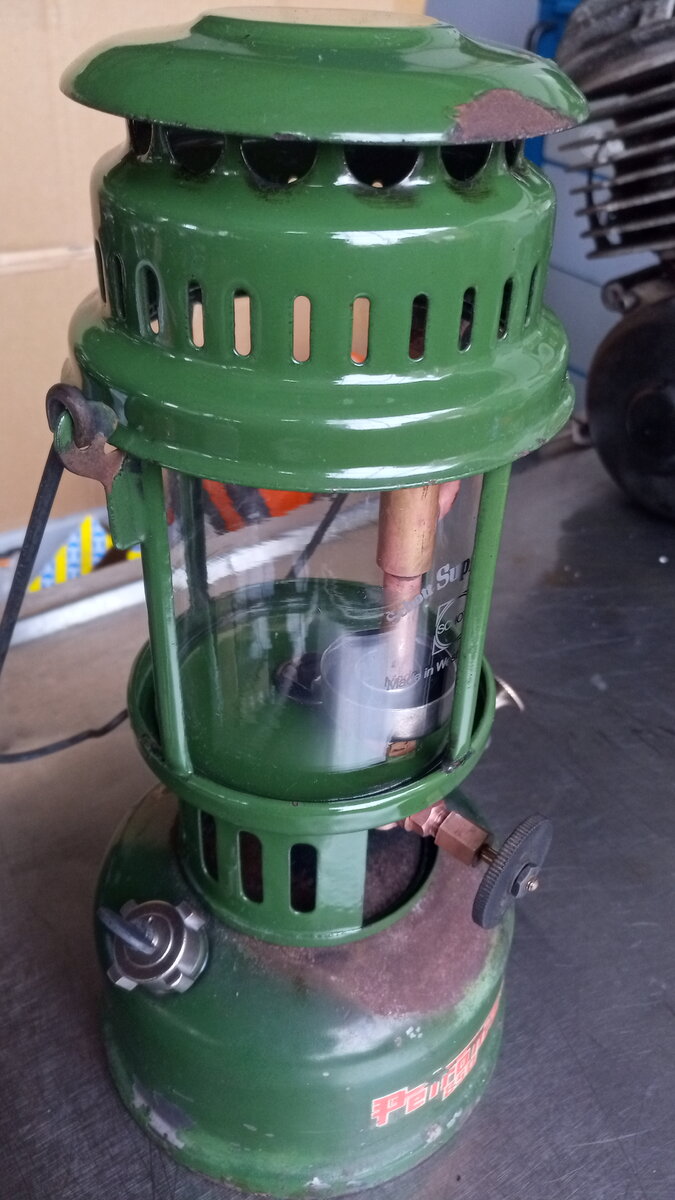

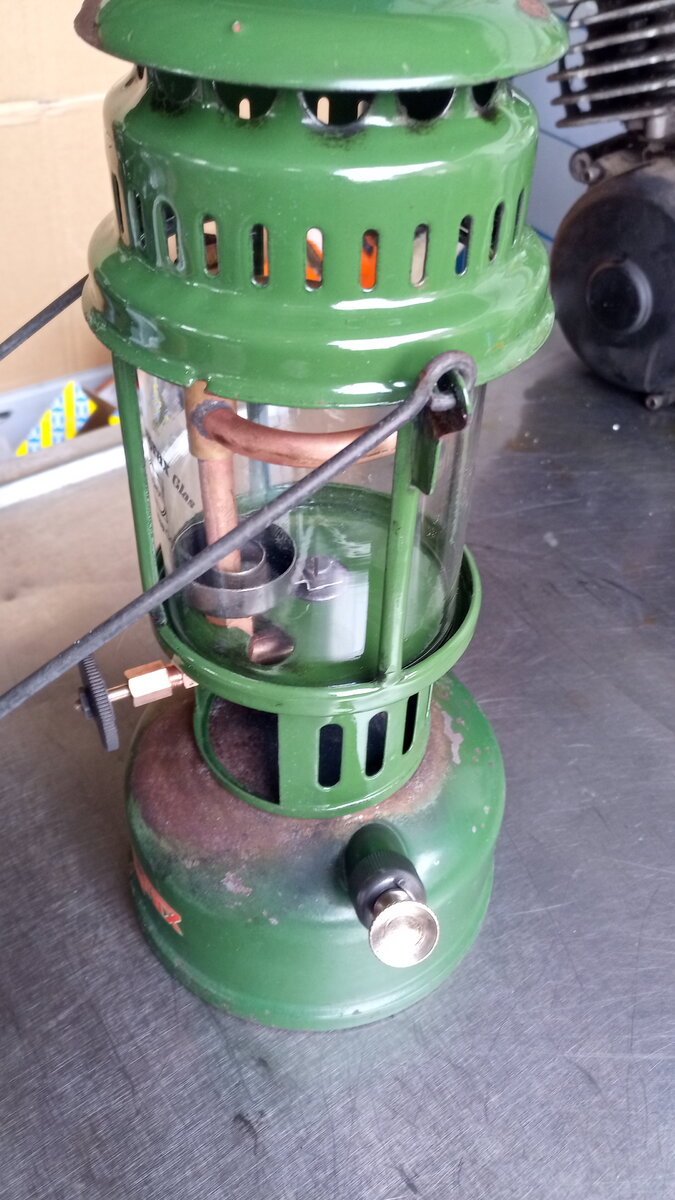

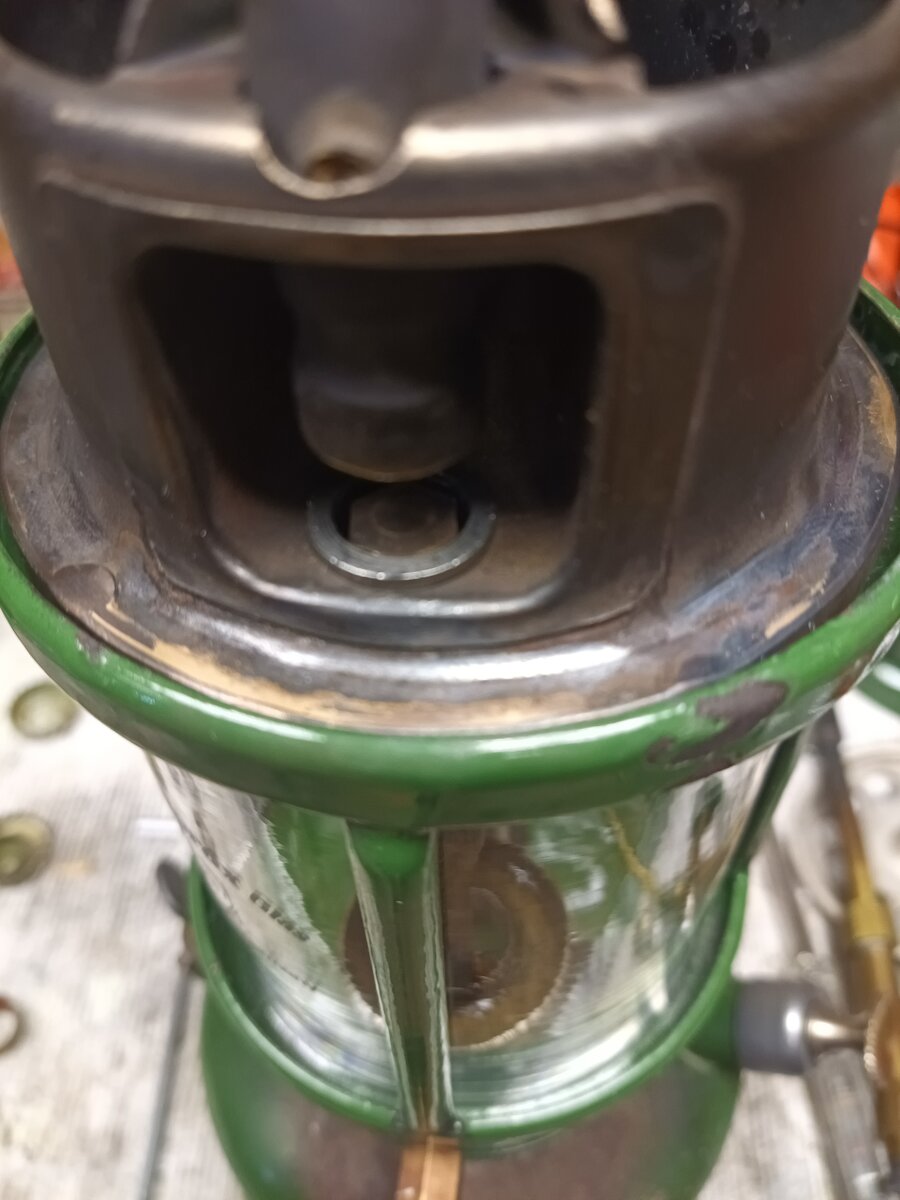

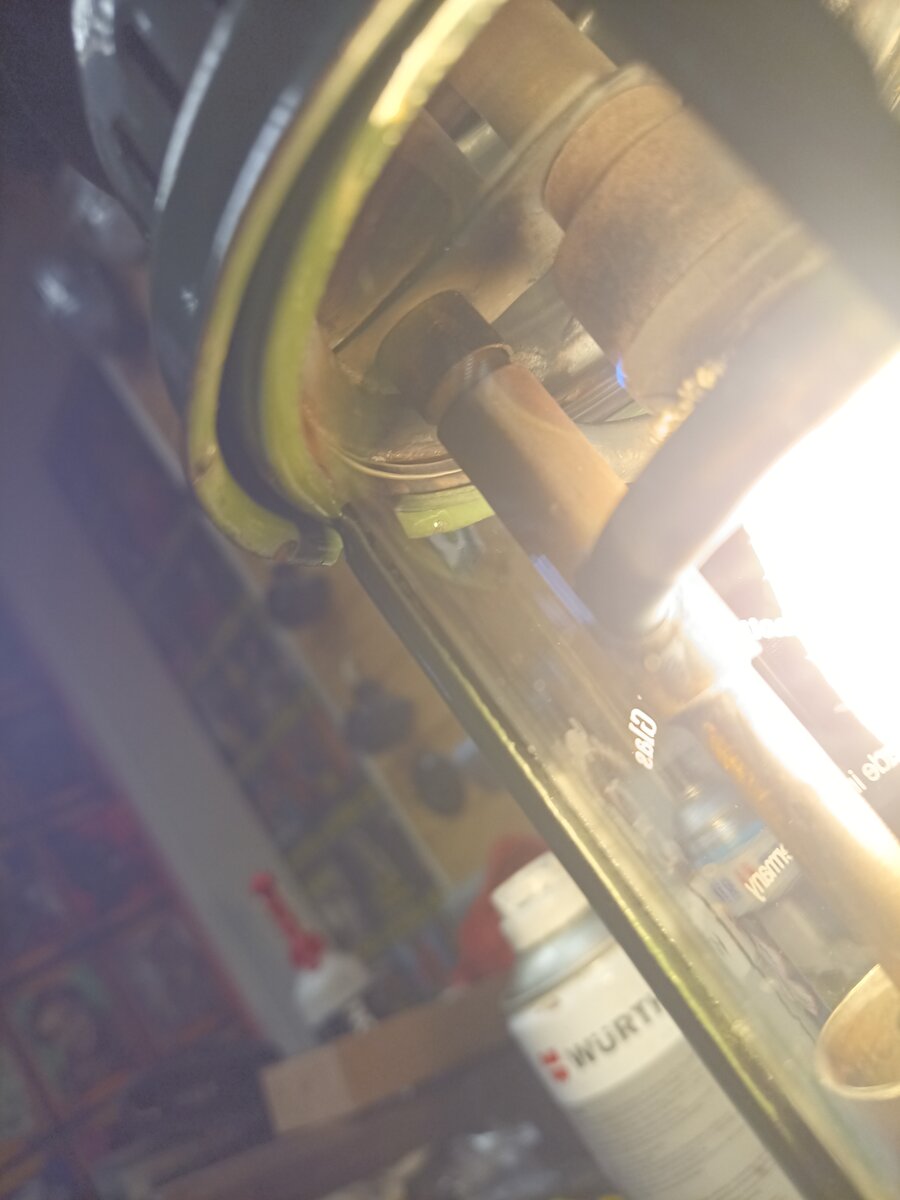

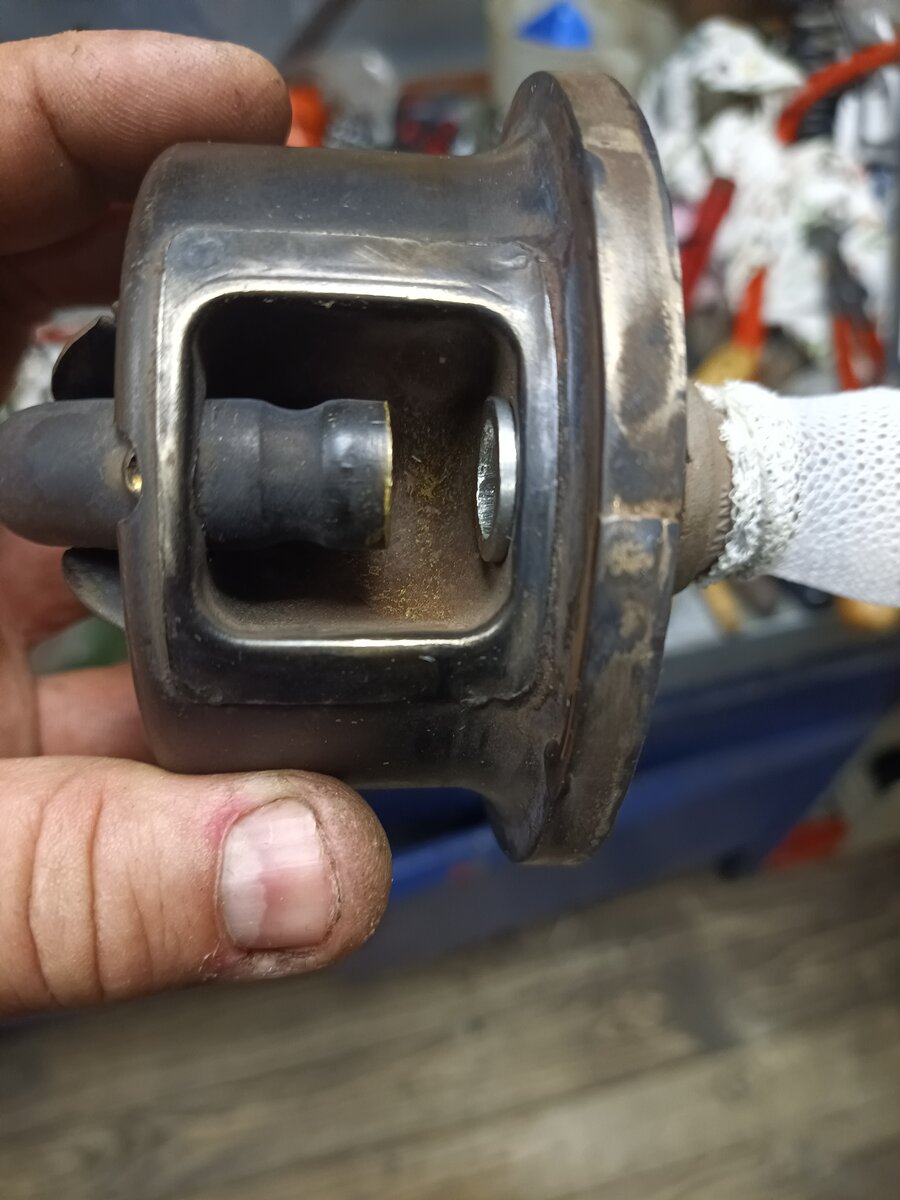

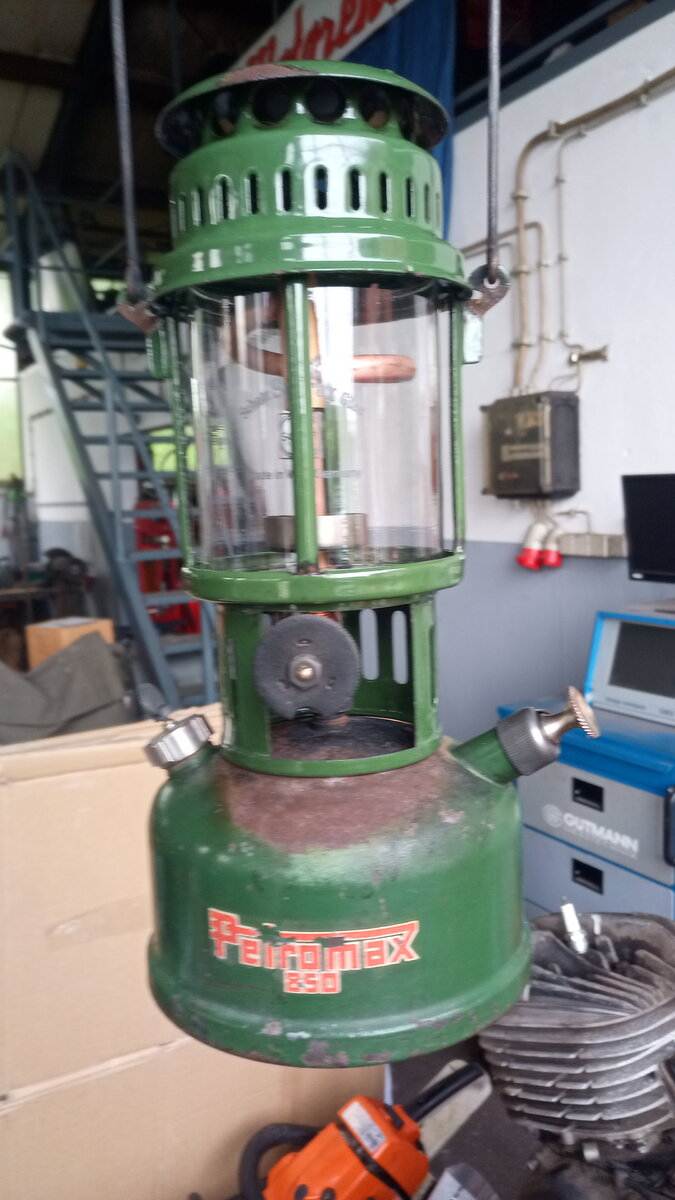

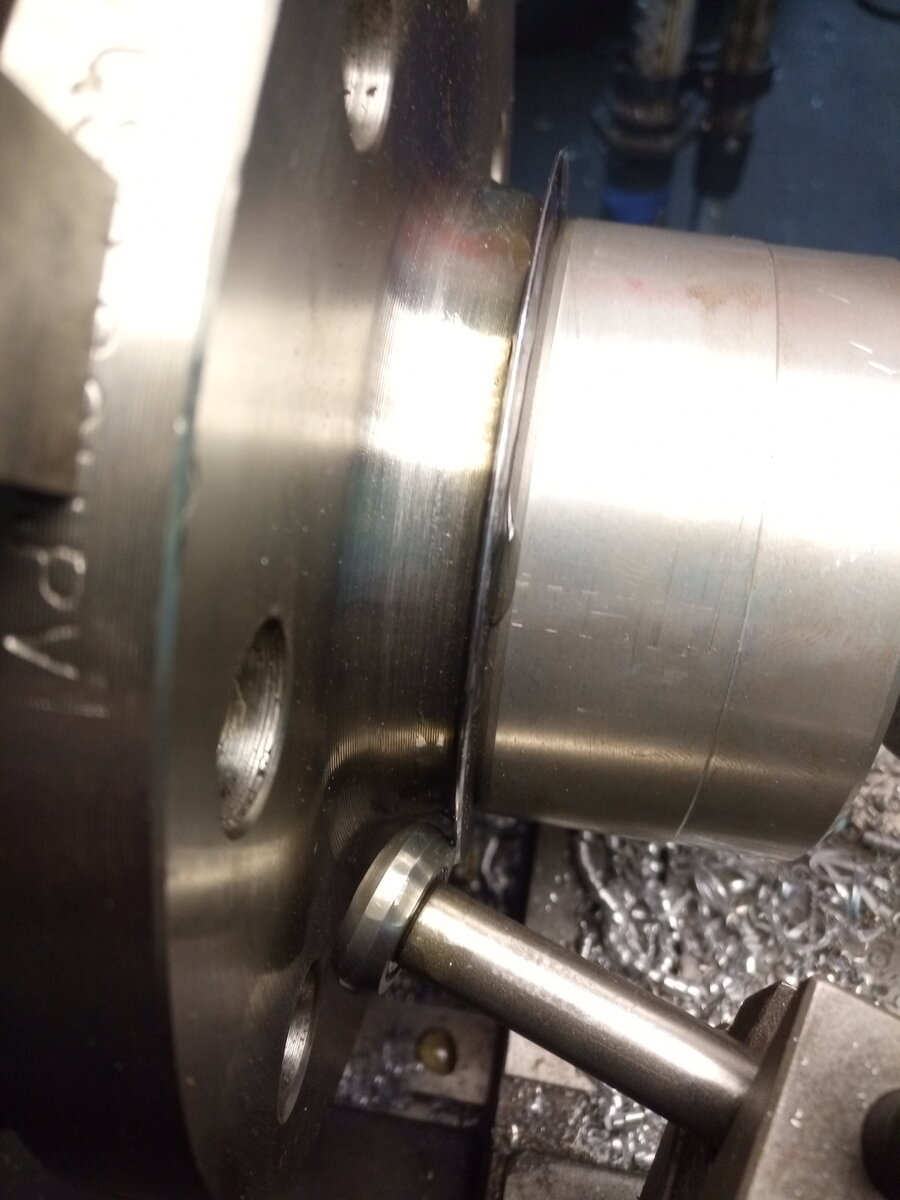

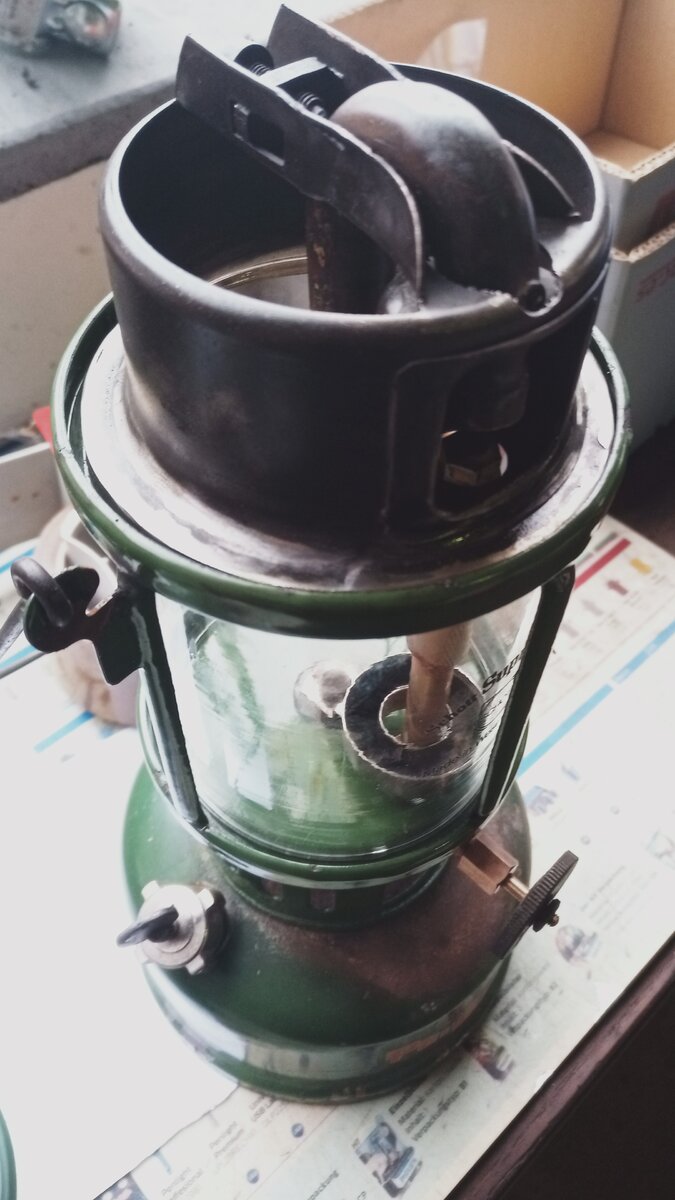

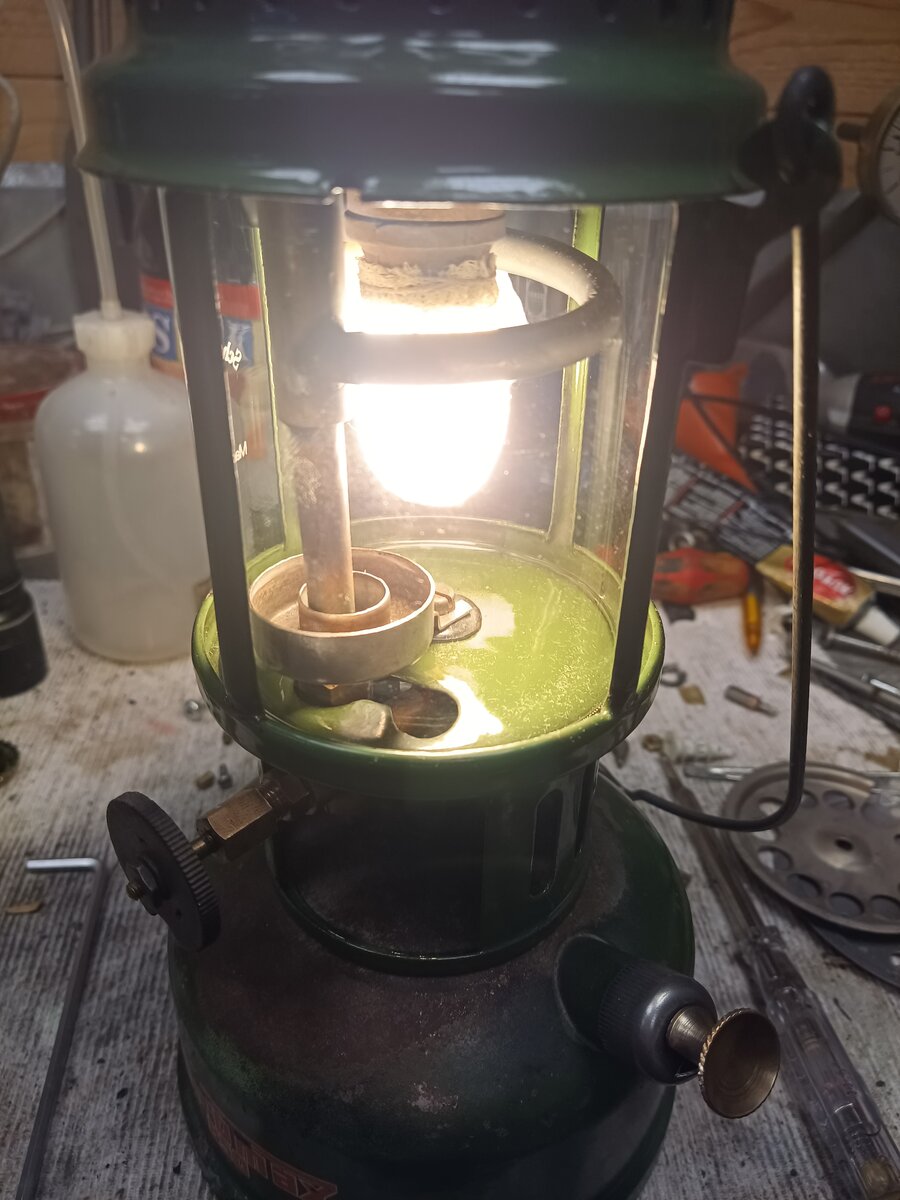

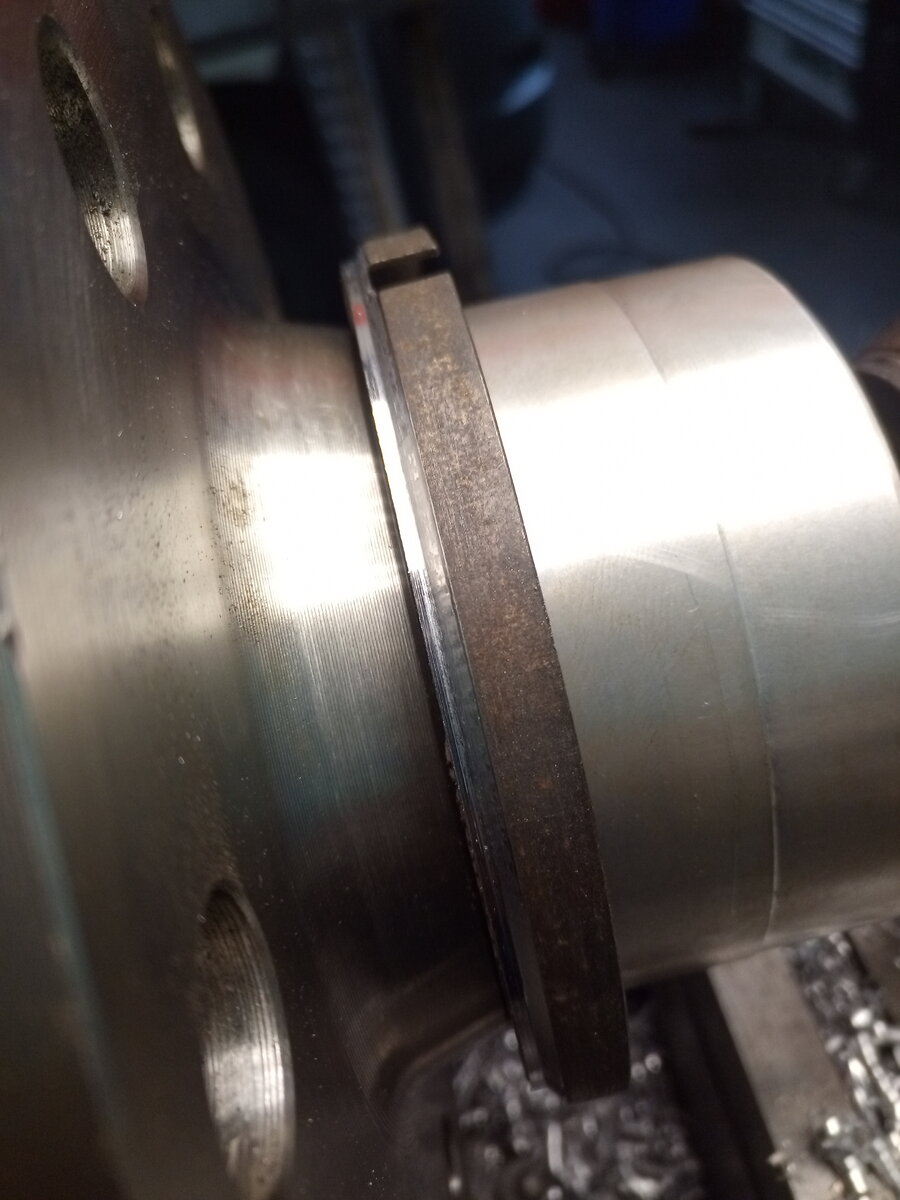

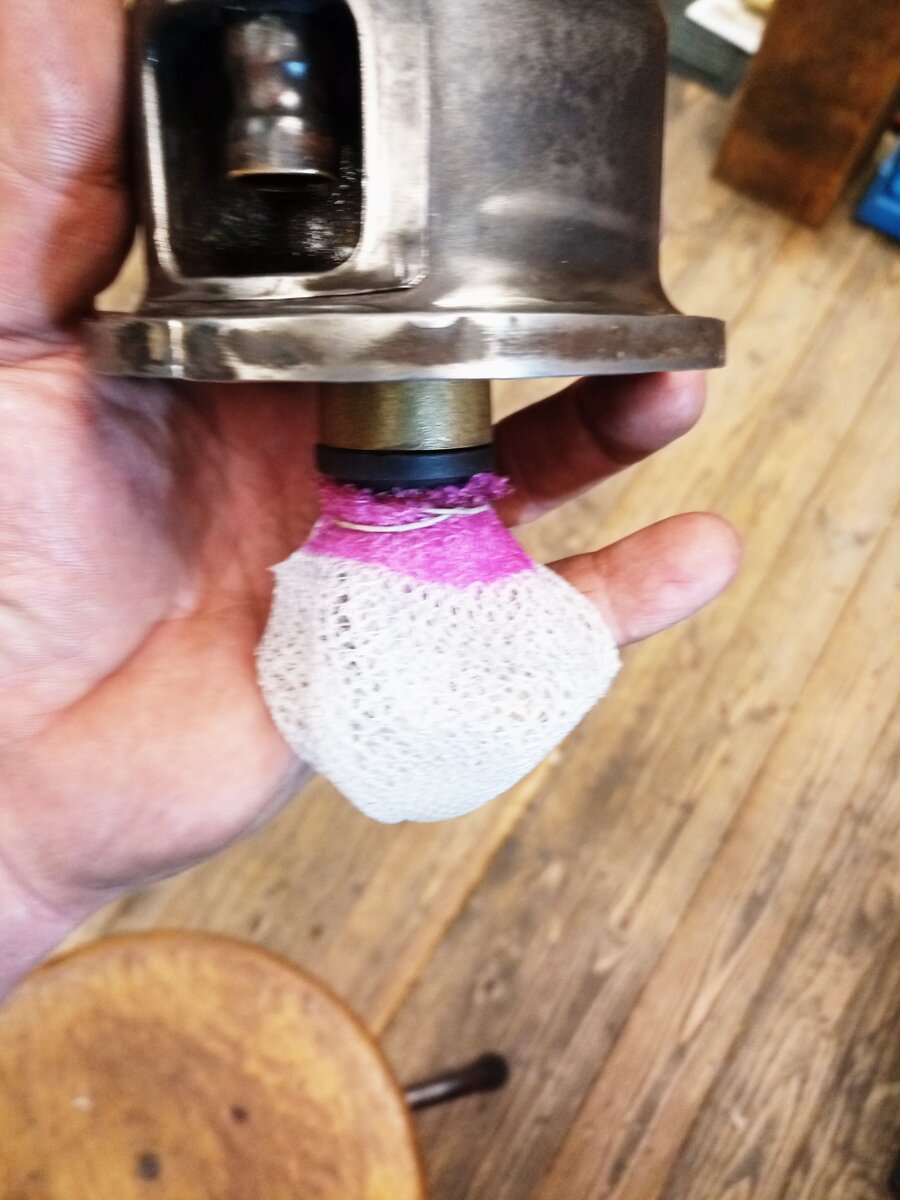

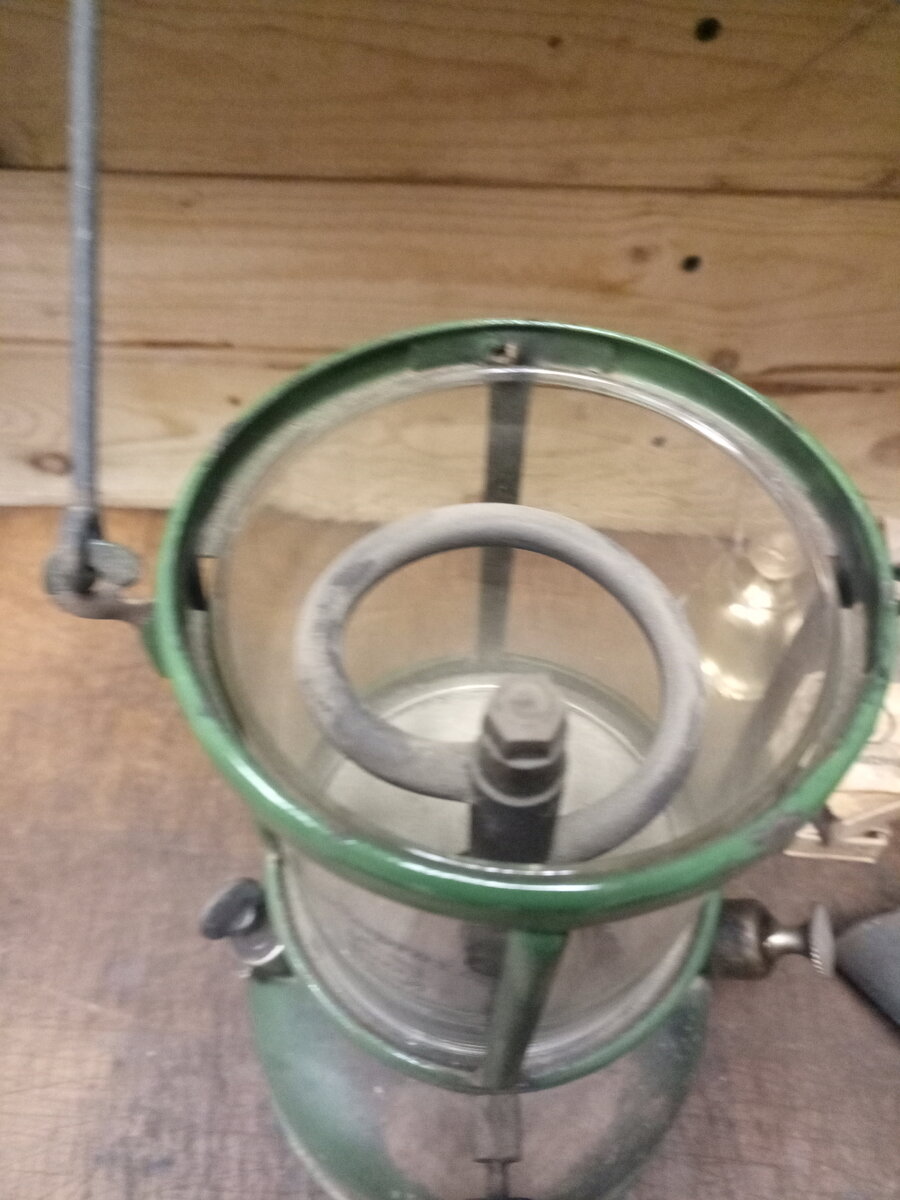

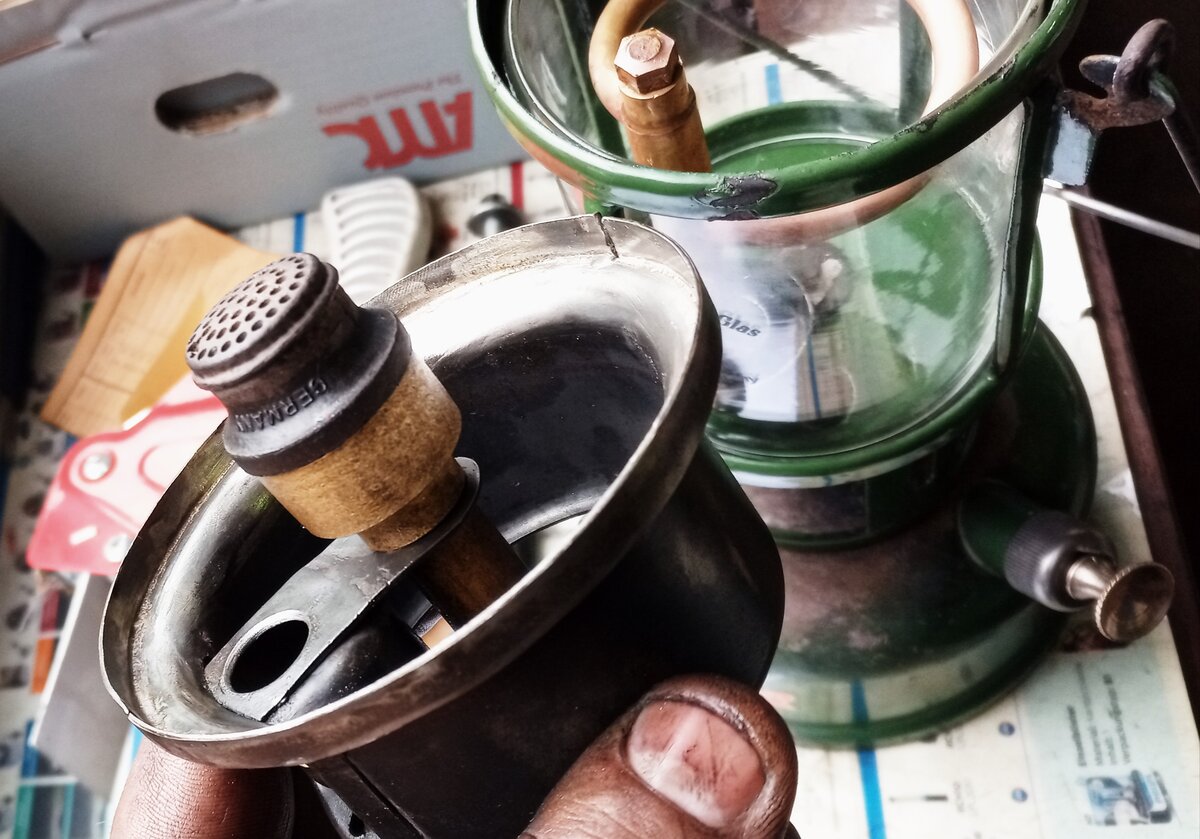

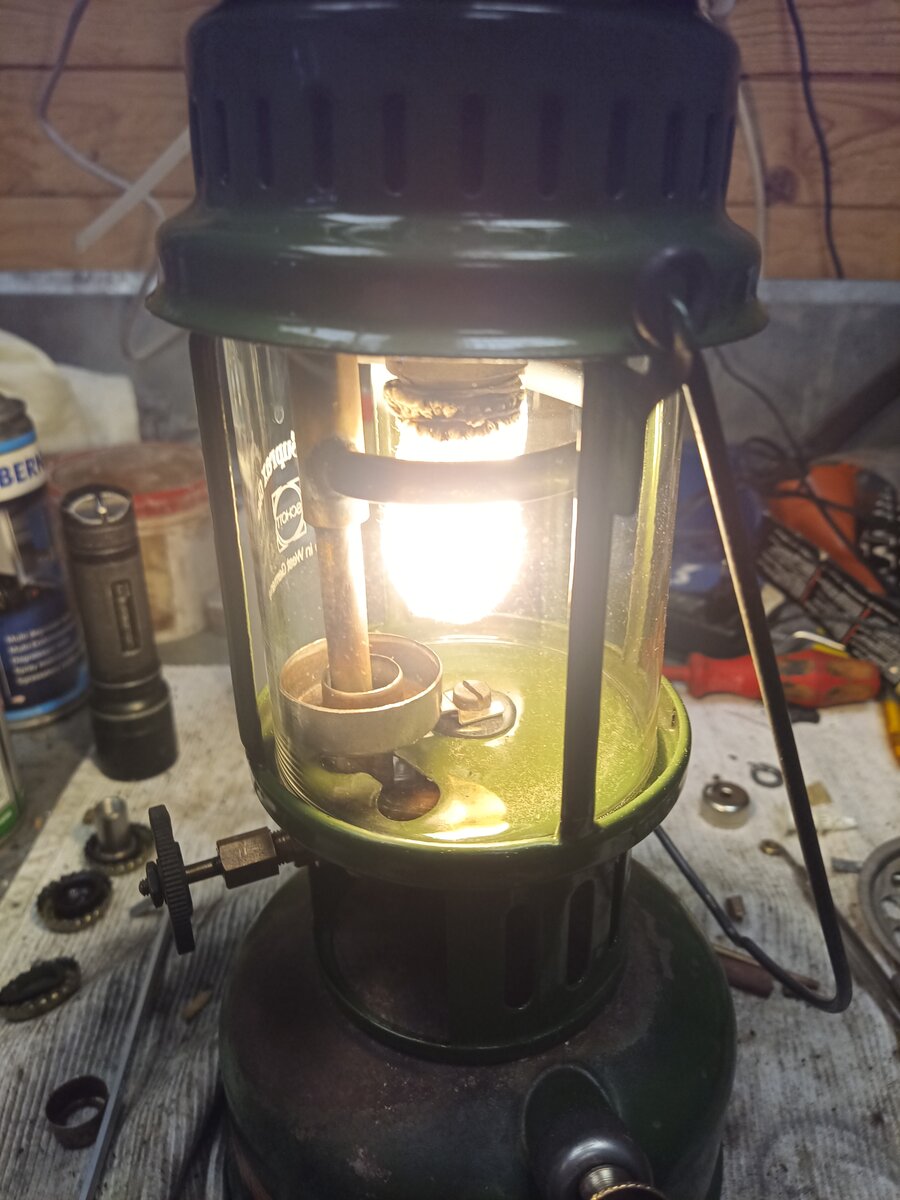

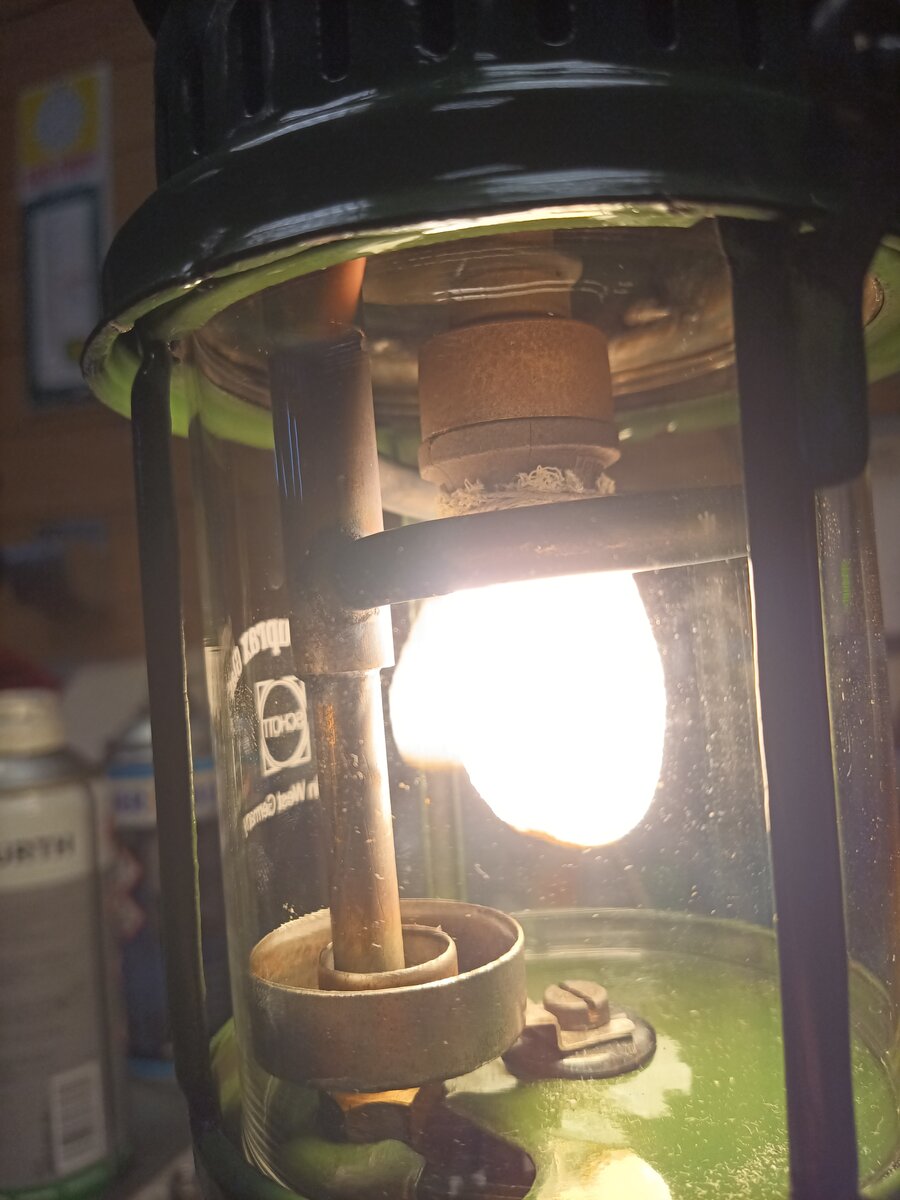

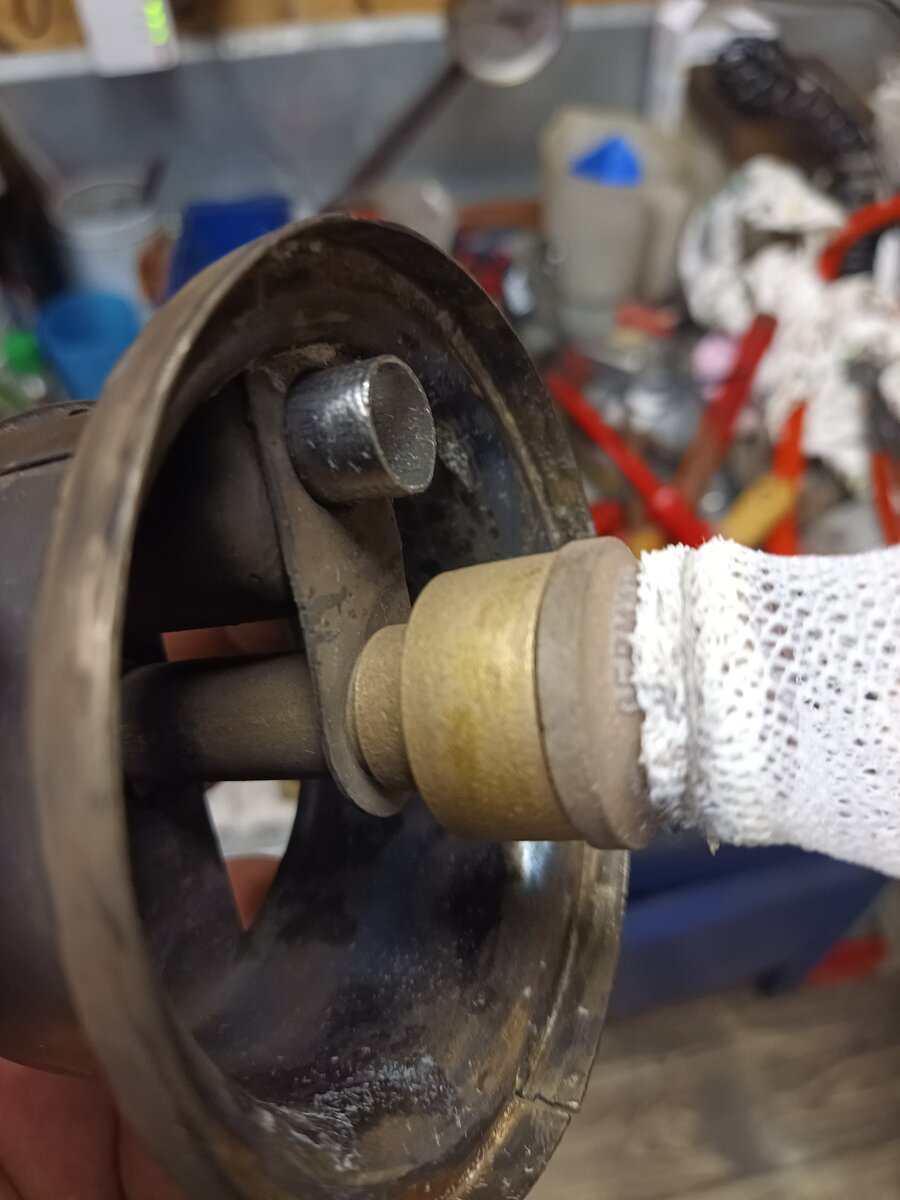

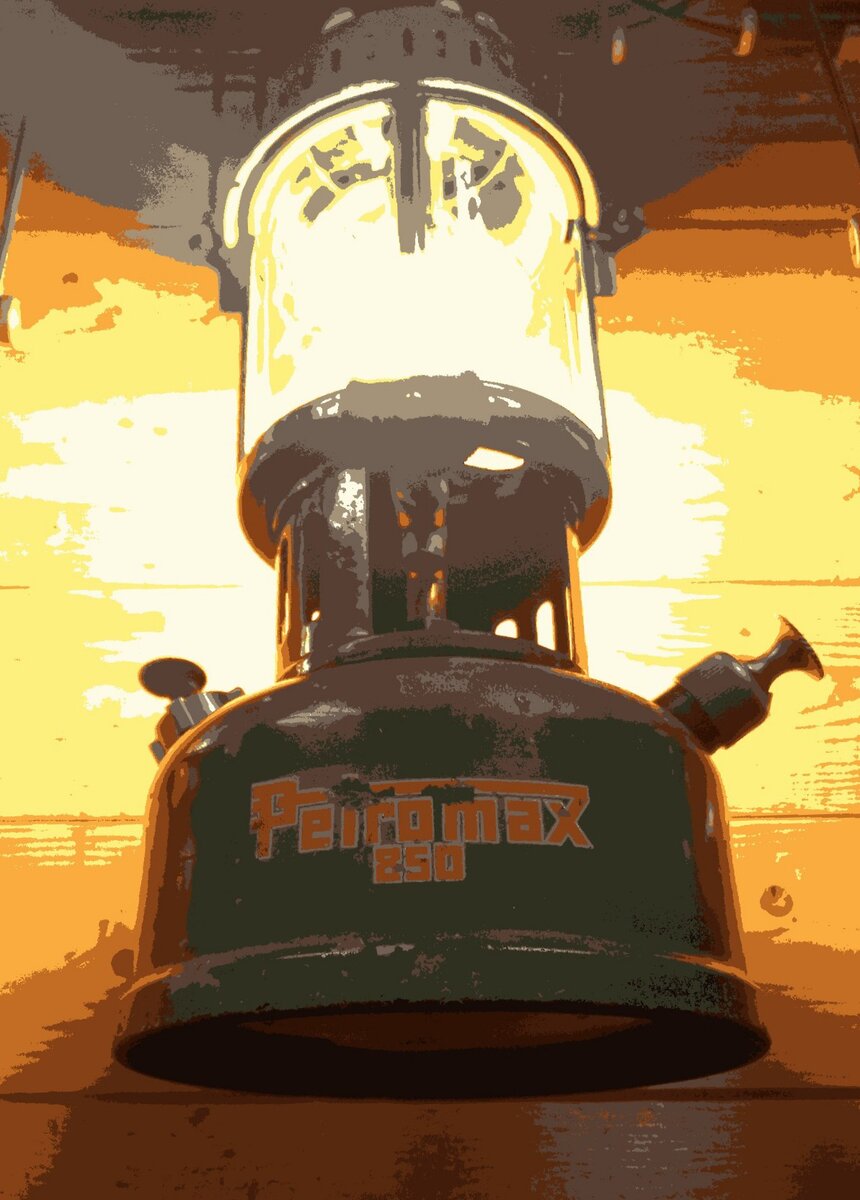

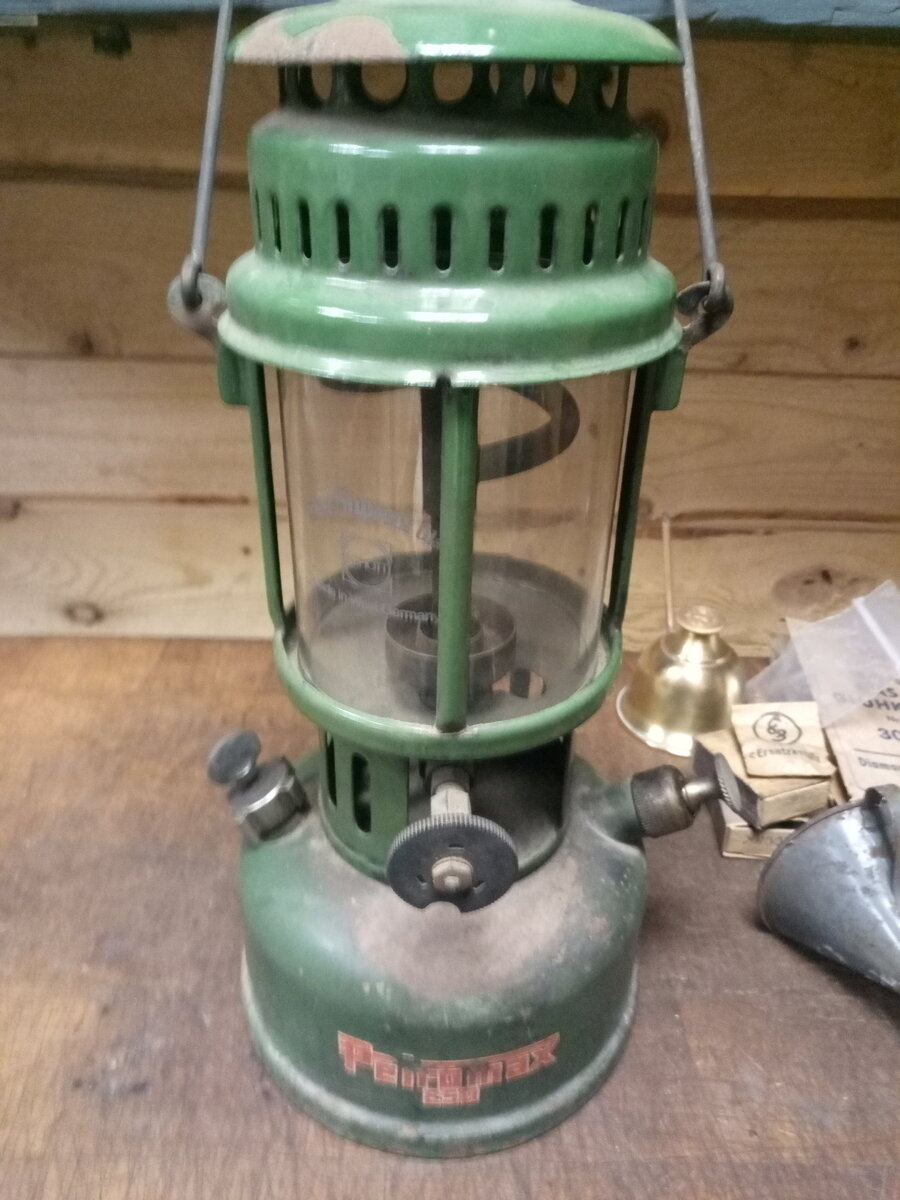

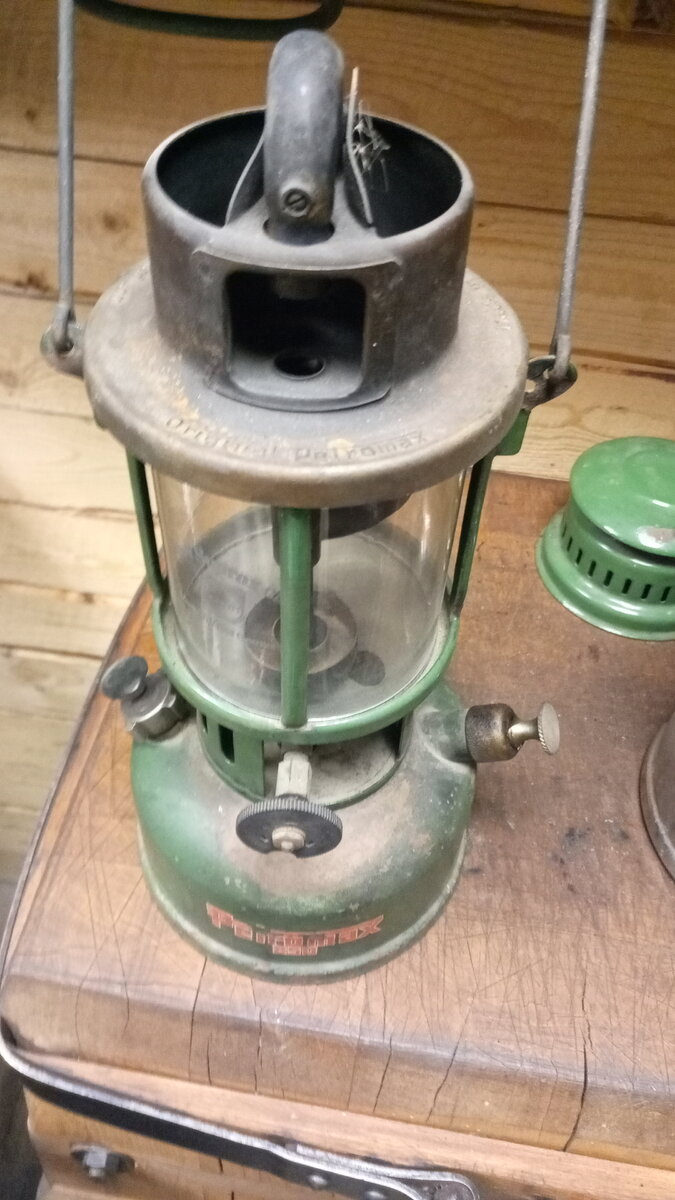

Moin, today I had the opportunity to bring my Petromax 850 back to life. The lamp came to me a few weeks ago and is basically in good condition. The restoration was almost limited to cleaning, cleaning and a proper assembly. Whatever the reason, the entire inner jacket, including all built-in parts, was missing. There is nothing to buy, but a dimensioned drawing can be found on the internet. So a replica came into consideration. When a 250 Petromax was visiting recently, I put on the inner jacket and found that it seemed convertible with a feasible effort. A used complete coat was found in the classifieds. The necessary changes were essentially limited to reducing the outside diameter, attaching a new collar and shortening the mixing tube a little and inserting it deeper. I have now inserted a guide sleeve into the inner jacket. This reduces the passage from the carburetor into the jacket somewhat, making it "denser". The original jacket also has such a bushing, which, as I understand it, also serves to prevent the hot exhaust gases from being drawn up along the nozzle and entering the mixing tube. This gives the possibility for the hot gases to flow in, also about 10 mm lower, the "fresh air space" to the nozzle and mixing tube is no longer "polluted" by hot exhaust gas. The first attempt to start was immediately successful and the lamp burns with the settings, free to the nose, clean and stable! I hope the Google translator and follow-up service translated my text in a way that was understandable and I found the right category here. best regards, Torsten
Fantastic work. You saved this for years to come.Your skill with working with thin material is to be commended.
Excellent work. Its always interesting to fabricate or improvise in order to make up for the missing pieces.
