Tilley Al8

Discussion in 'Pressure Lamp Discussion Forum' started by dibblette, Oct 3, 2020.

  1. dibblette

    dibblette Subscriber

    Offline
    Joined:
    Aug 10, 2011
    Messages:
    26

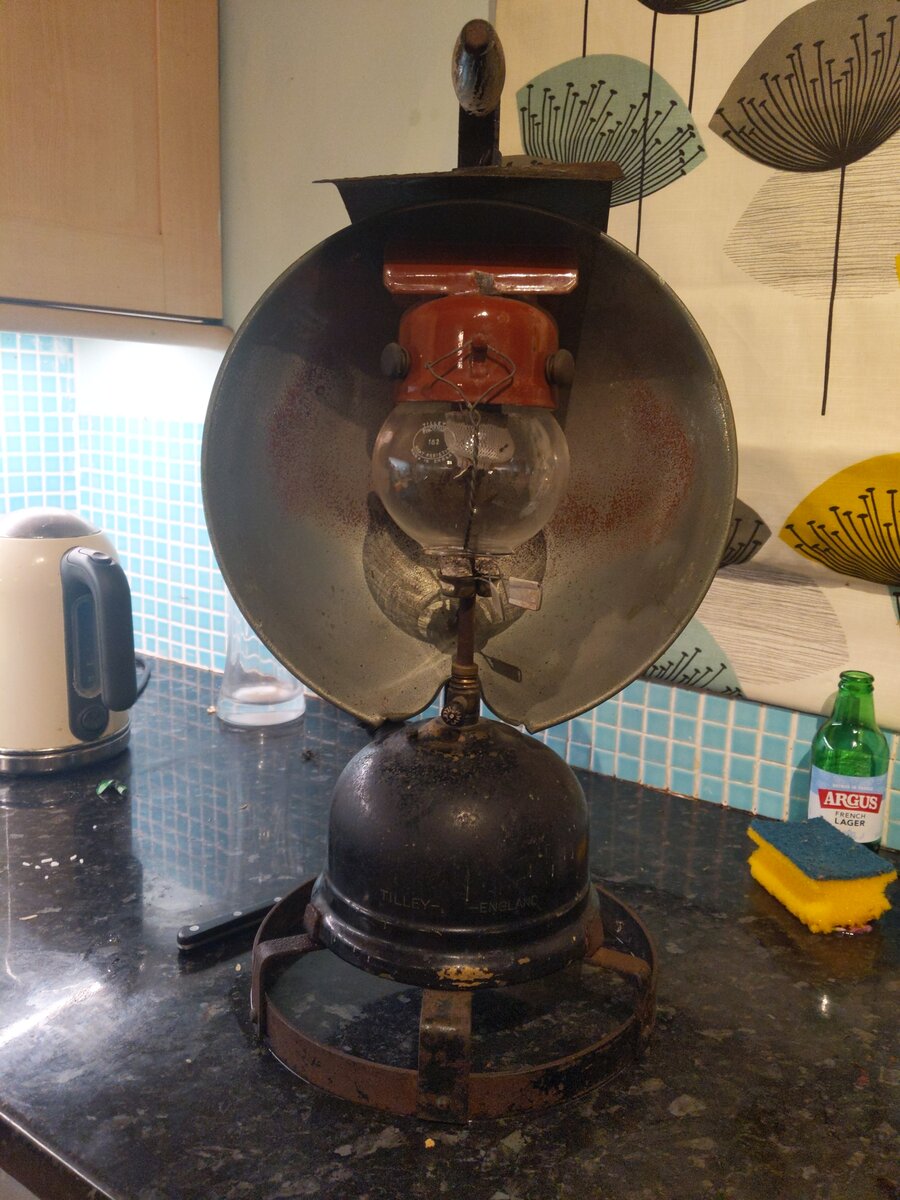

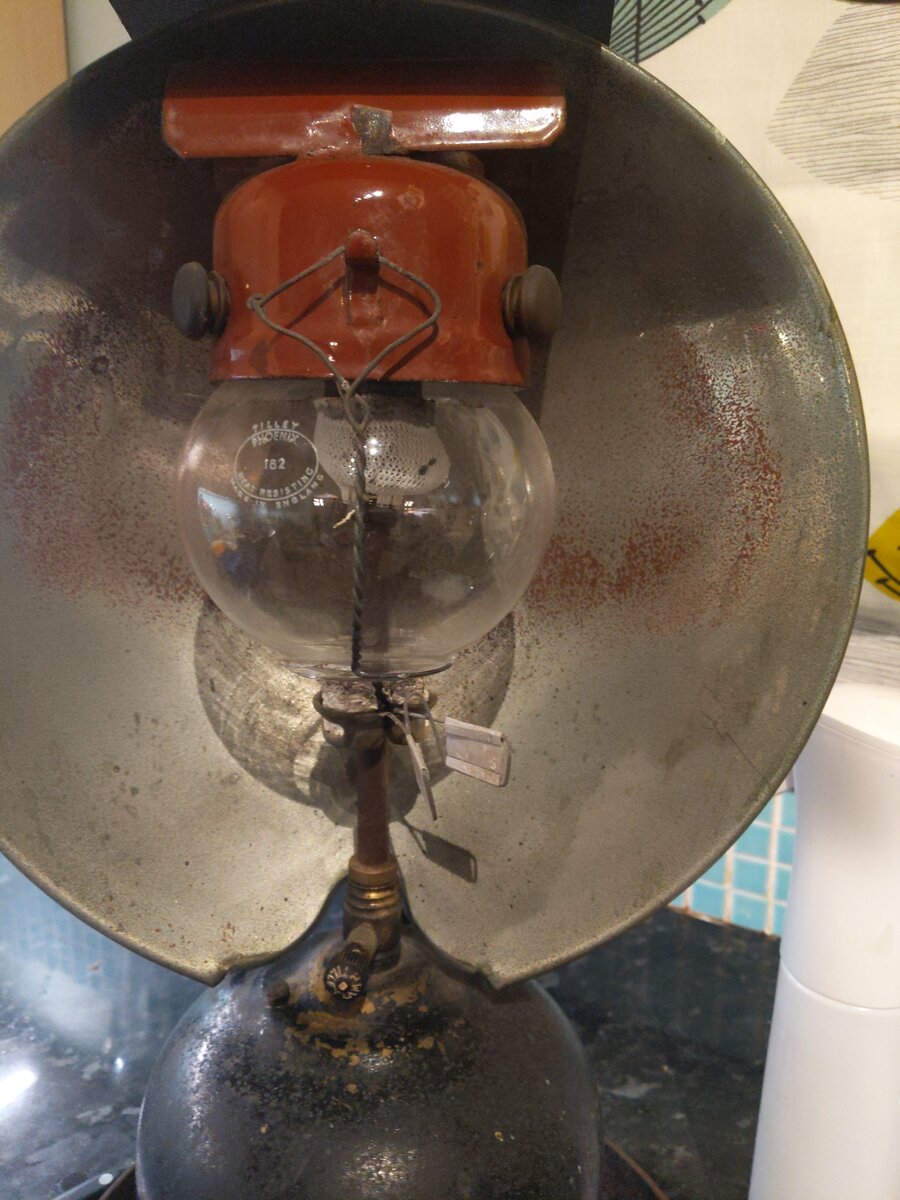

    Hi, after some advice. Not sure what I should do with this. I've never really refurbished lamps before, just got them working and enjoyed them in the condition they are in. But this one needs a bit more work. How can I get the reflector shiny again? I'm not sure I love it (yet!) so may want to sell it one day, so is it better to leave as is or repaint tank and frame etc? Going out to the garage to try and light it now :D 16017538896801854810261902600896.jpg 16017539242731950502384775636740.jpg

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    11,057
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @dibblette

    If you are going to sell it, don’t paint the tank would be my advice.

    I would use a gel-based “rust remover” (Hammerite) on the reflecting surface of the reflector, followed by a careful polish with Autosol and cloth (not steel wool or similar).

    Cheers

    Tony

  3. dibblette

    dibblette Subscriber

    Offline
    Joined:
    Aug 10, 2011
    Messages:
    26
    Thank you, I'll try that. It lit nicely but losing pressure so will replace the washers tomorrow and give it a good clean.

  4. paul m

    paul m Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    763
    Location:
    lancashire. UK
    I would look for another reflector from a r1 heater, as yours will show copper through when you start to polish it....

  5. dibblette

    dibblette Subscriber

    Offline
    Joined:
    Aug 10, 2011
    Messages:
    26
    Is there no way to repair the surface? R1 reflectors don't seem that easy to find either and maybe I'm wrong but I prefer where possible to keep all the original parts on lamps I get rather than cobble together lots of different ones.

  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    11,057
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @dibblette

    Can you identify both the surface and the underlying metal?

    Tony

  7. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,986
    Location:
    N E Scotland
    Would the original reflector have been a steel or copper one and if the latter would it have the Tilley logo? I have a few unwanted reflectors which were destined for the scrappie.

  8. dibblette

    dibblette Subscriber

    Offline
    Joined:
    Aug 10, 2011
    Messages:
    26
    It's not steel, but it doesn't have a Tilley logo (that I can find - where should it be?) . It's my first lamp with a reflector so I don't know what the surface would have been made of, sorry.

  9. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    4,029
    Location:
    .. next to the Chester & Birkenhead Rlwy
    Hello! :)

    It's a great looking Lantern with fantastic aging patina:thumbup:...Why not take off the reflector and give it a polish with Autosol and see how it looks?

    Then just give the rest of the Lantern a clean and wipe or light polish/ wax, change the seals and see what it looks like when it's going?

    Then you can show us the pics and show us how you got on??? :thumbup::thumbup::thumbup:

  10. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    3,531
  11. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    16,663
    Location:
    Shetland Islands UK..
    A fine restoration project!:thumbup:

  12. AussiePete

    AussiePete United States Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,648
    Location:
    Toowoomba Australia
    Nice restoration project. Parts and seals etc. are available from the Fettlebox, the link is on this forum.
    When you’ve got it running please post your “money shot” ( a picture of its first light after restoration).
    Have fun and enjoy the restoration.
    Cheers
    Pete

  13. Fireexit1 United Kingdom

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    3,525
    Location:
    Brighton UK
    It is the age old conundrum: preservation or restoration ? Personally I prefer preservation every time. However temporarily fitting a better dish and keeping the original with the item is still preservation.
    But whichever you do it is better than the scrapheap,
    Cheers
    Chris

    Last edited: Oct 4, 2020
  14. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,986
    Location:
    N E Scotland
    KAB restored one earlier this year, it’s in the gallery and he made a smashing job of it.
