Would anyone please give me some detailed images of a 220 burner with the exact dimensions. I think the general dimensions will be the same for all the model variants. I just want to check if it could be adapted to replace a Continental 1015 burner. Erik
Based on the pictures you need a 220E or 220F burner. The later ones had various stamped and press fit pieces. I'll see what I can find later today.
Toby, I need - the outer diameter of the air tube, - the distance from the generator to the air tube - the length of the air tube (bottom end to fuel intake hole) I think these are the relevant dimensions to figure out if a burner assembly could be "adjusted" to fit a Continental 1015 lantern. It does not matter if the mantles are a little more upwards in the hood. Erik

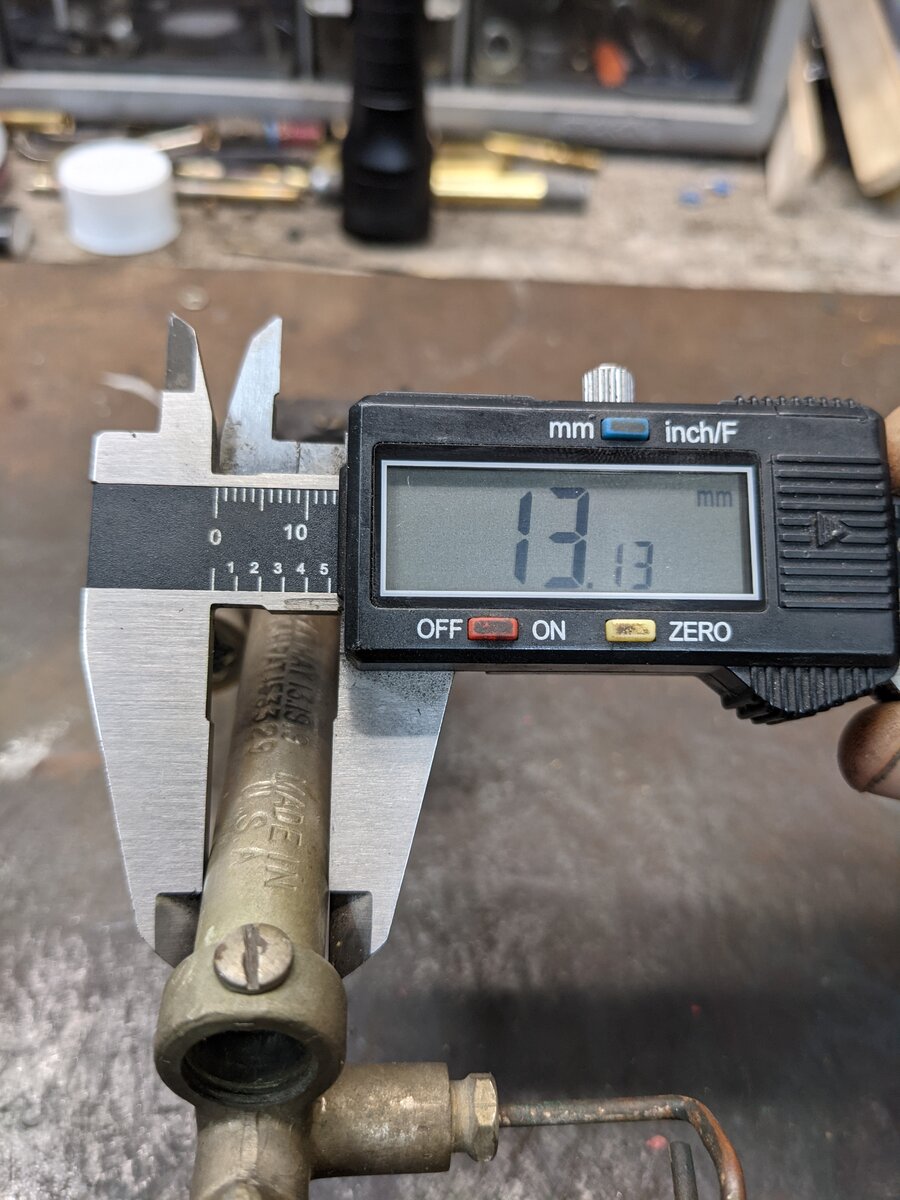

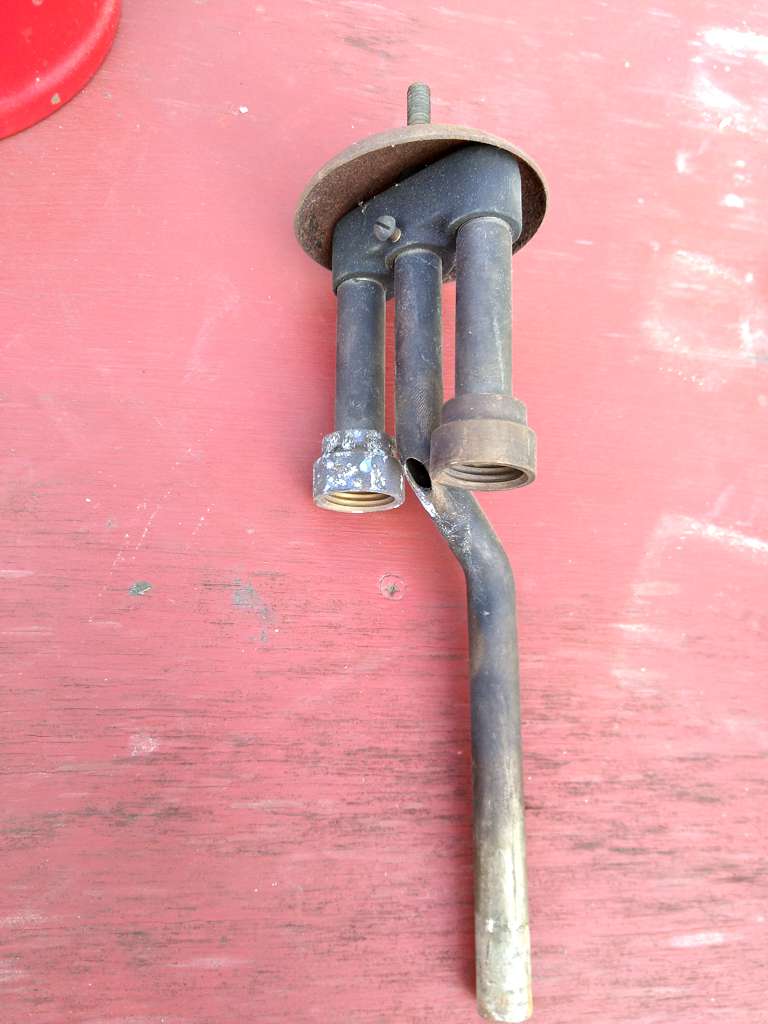

Erik I wasn't sure how your wanted the generator to air tube measurement? I went from the center of the gen to the leading edge of the air tube. A couple photos are of a lamp burner and another a 220/220C but they are nearly identical from one to another air tube wise. I assume you wanted the measurements in metric? Anything else let me know.
