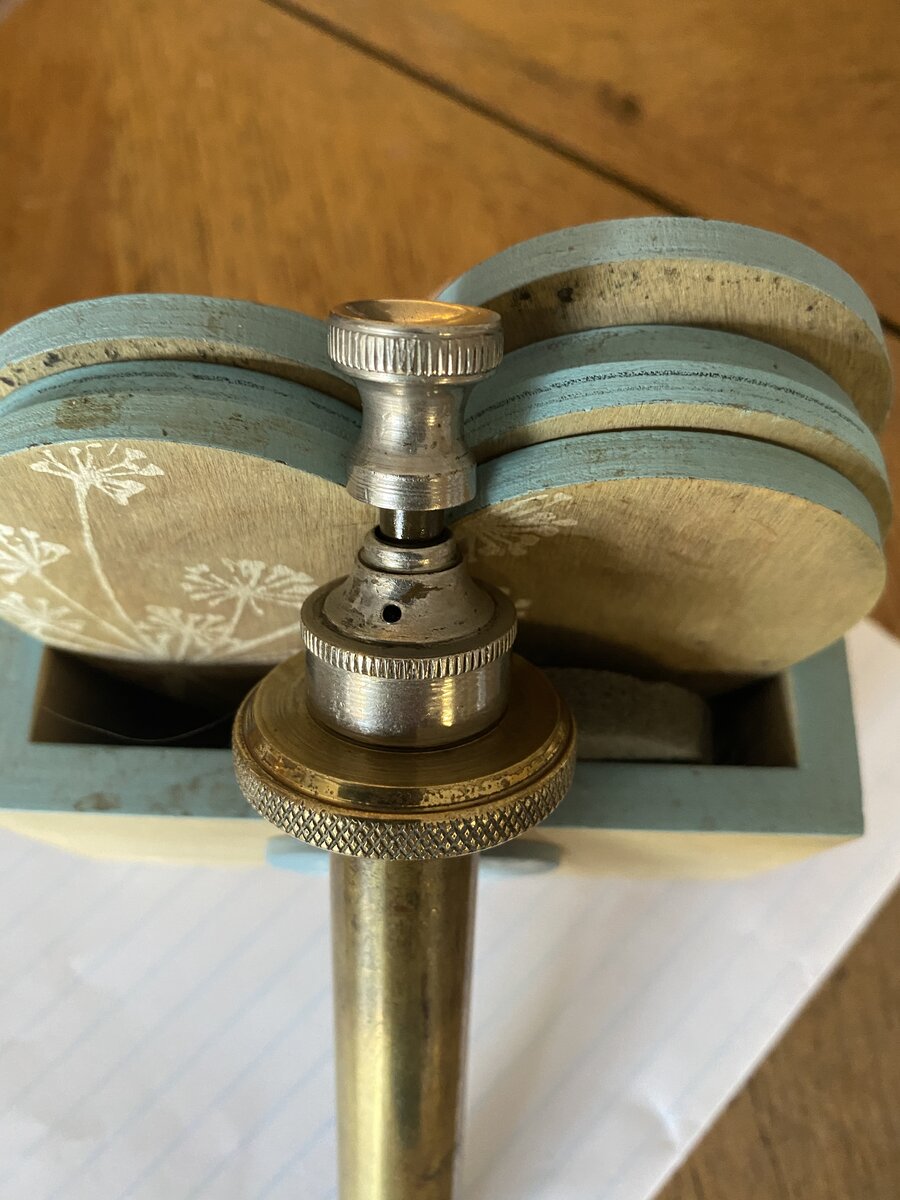

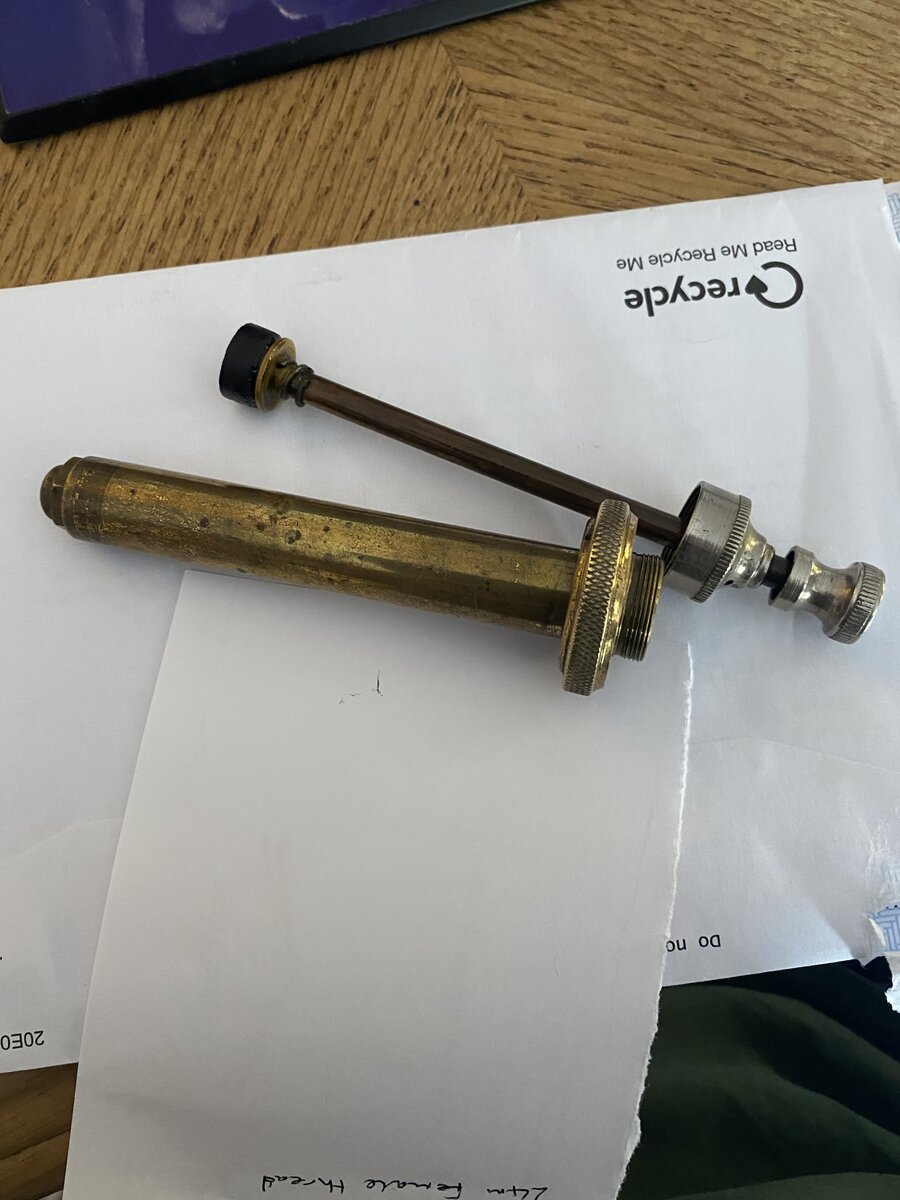

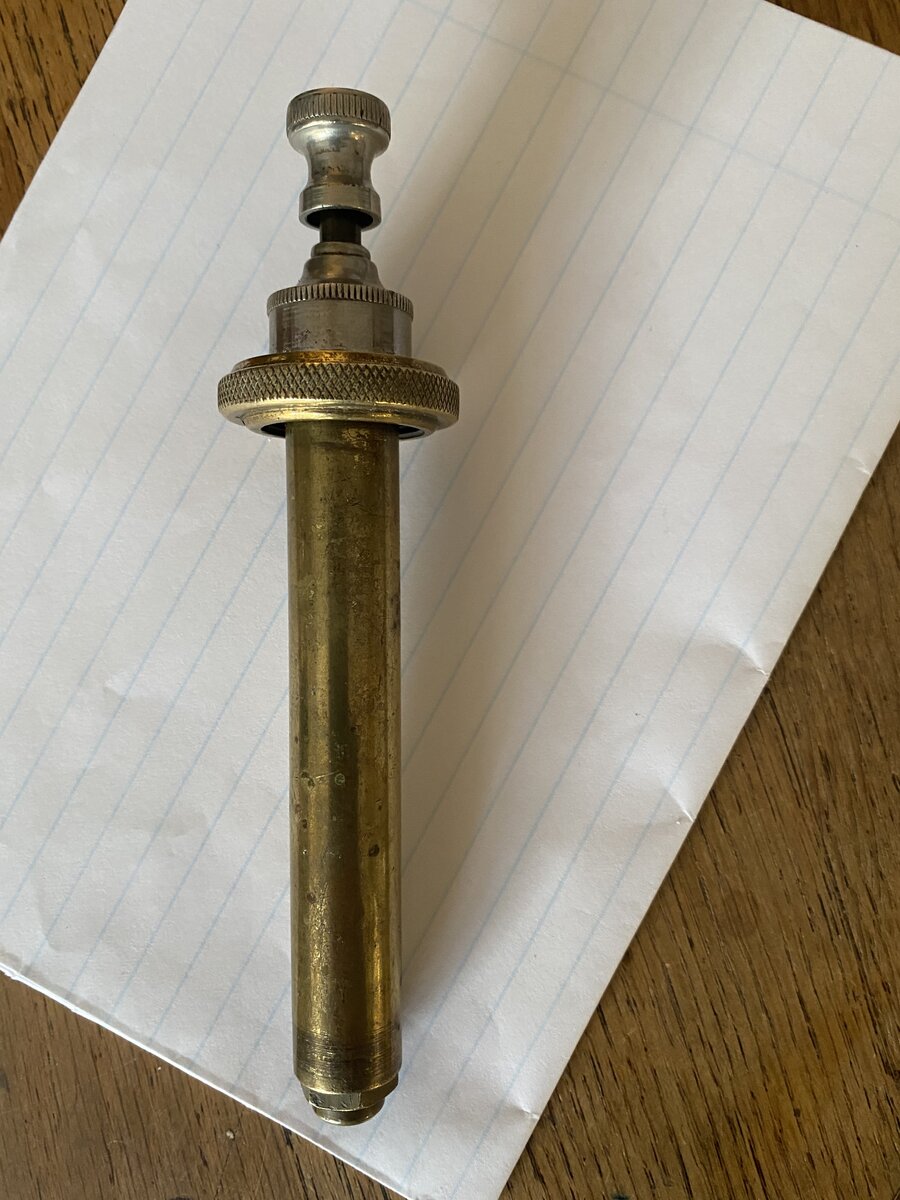

Hi all, I need your help to identify a pressure pump I acquired some years ago among a lot of spares I purchased. Details as follows. Length in total when closed is 155mm Length when extended is 245mm Large female thread is 24 mm Threaded nickel Cap is 20mm in circumference Many thanks for any advice……..
Welcome aboard! That pump is for a variety of Tilley lamps and lanterns, such as a TL-10 and a PL-53 and others. Table & Vase Lamps (TL & VL) PL52-PL53-PL54
That’s such a relief to know, I was going cross eyed going through umpteen image searches. I knew this forum would produce an answer given the wealth of knowledgeable people who populate it. Thank you again
@JEFF JOHNSON Hi mate is that common not to have the Tilley marking around the pump, as all my ones have Tilley stamped on them? Besides the later TL106 Just curious.
G-day mate, it's not that common, but they do turn up and the links below show pump topics and there are several shown there. 4 Tilley WW2., pumps. 11 Styles of Tilley TL10 etc., pumps.
@JEFF JOHNSON Oh yeah I suppose I did forget about my hex style pump and my other round steel pump on this R1 as well Tilley R1 Heater WWII Steel Font Silly me but in my defence it was 5am in the morning and I'm not a morning person. And it gets worse I also have the same pump on this Tilley R1 1957 September Tilley R1 Heater Lamp Sometimes it pays to stay in bed.

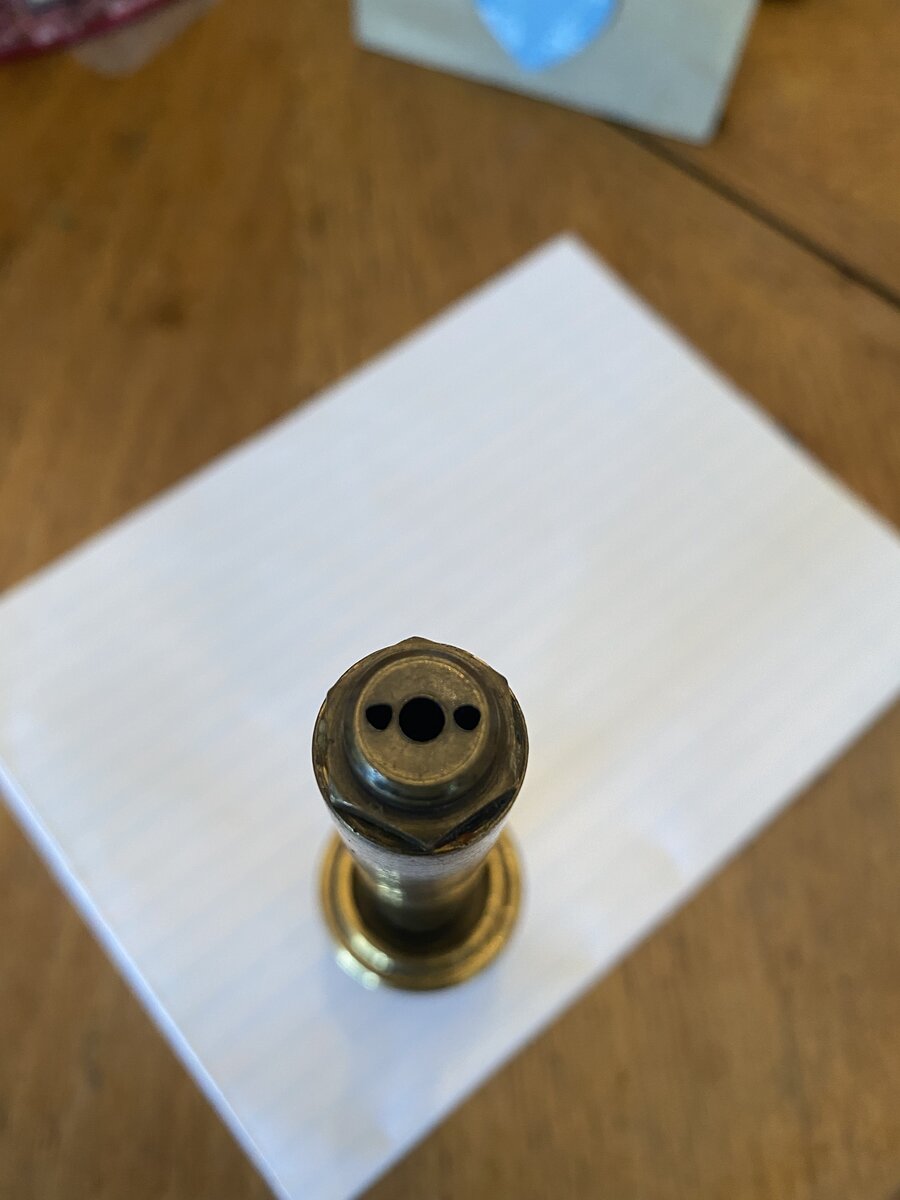

Just a note Kayen Australian copy of Tilley made pumps with no markings and the NRV has two hole compared to the 4 hole Tilley.
