    Hi all.
    I have in my collection a Coleman Northstar which had a bad fault in that when it had been running for awhile the generator tube started to bend which eventually fractured the joint just below the jet nipple joint allowing gas to escape,and being a gasoline lantern this was not good.
    I have modified the generator by sliding a three inch length of brass tubing over the generator which is a good snug fit and silver soldered this in place, and now the lamp runs for hours with no more problems at all.

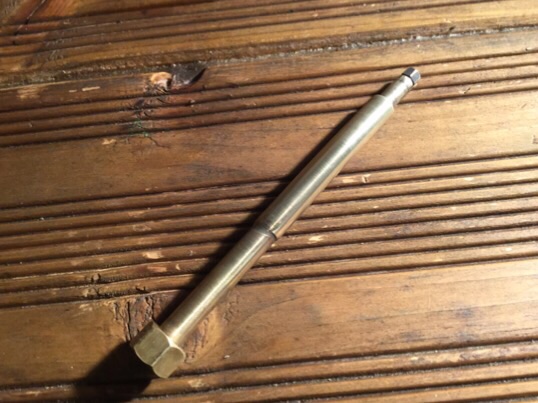

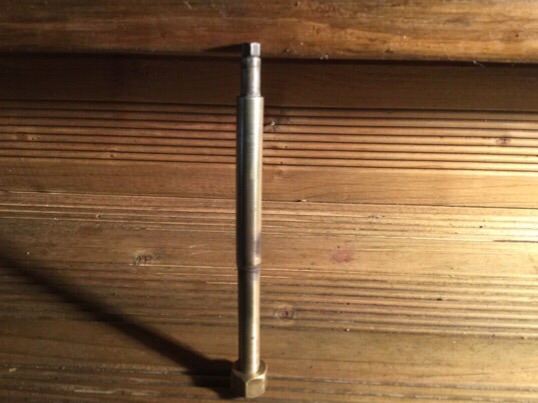

    Here are a couple of snaps of the modified tube.




    Attached Files:

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    16,877
    Location:
    Shetland Islands UK..
    Well fettled! :thumbup:

  3. Digout Australia

    Offline
    Joined:
    Feb 20, 2013
    Messages:
    481
    Location:
    Melbourne, Australia
    Good Fettling
