Nozzle Petromax 834

Discussion in 'Fettling Forum' started by Atlan, Aug 16, 2026 at 11:55 AM.

  1. Atlan Germany

    Offline
    Joined:
    Feb 29, 2024
    Messages:
    7
    Location:
    Germany
    Hello everyone.

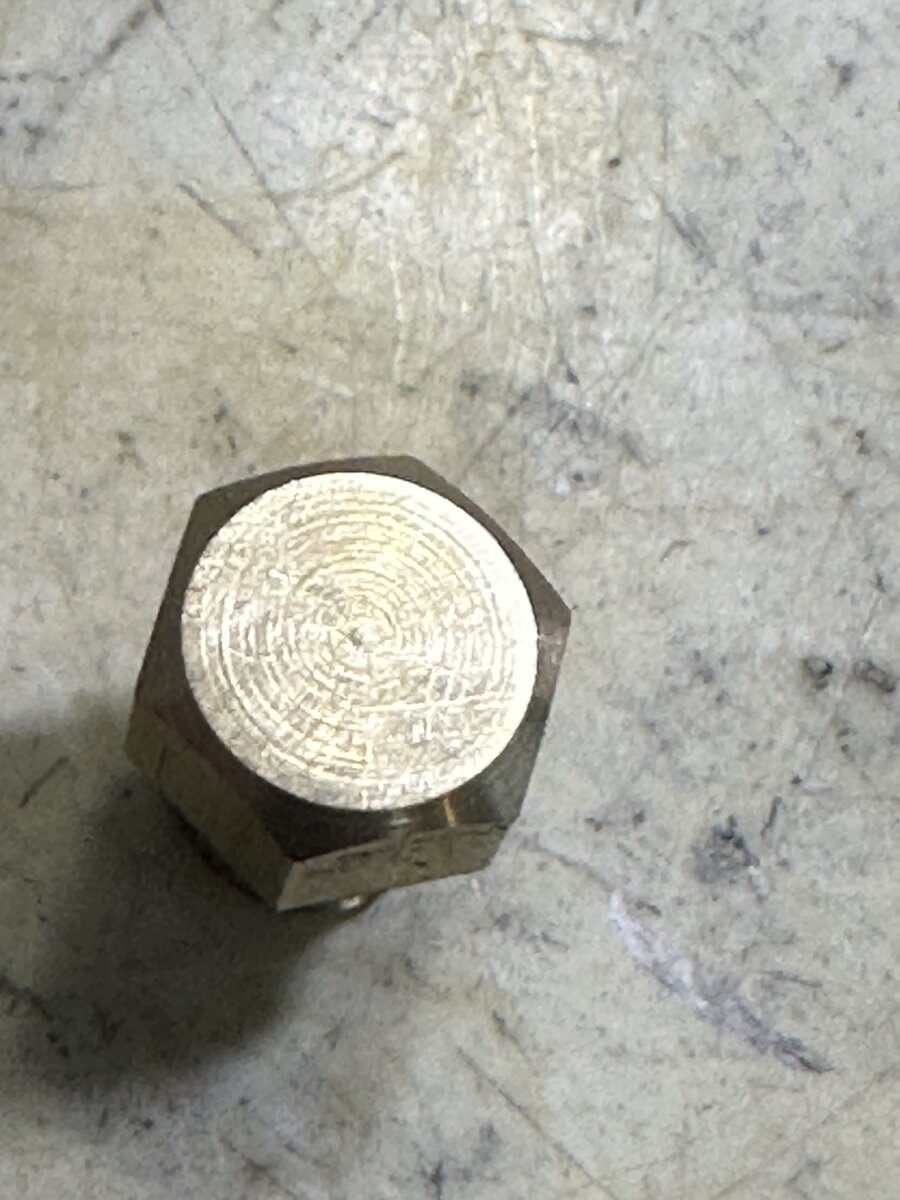

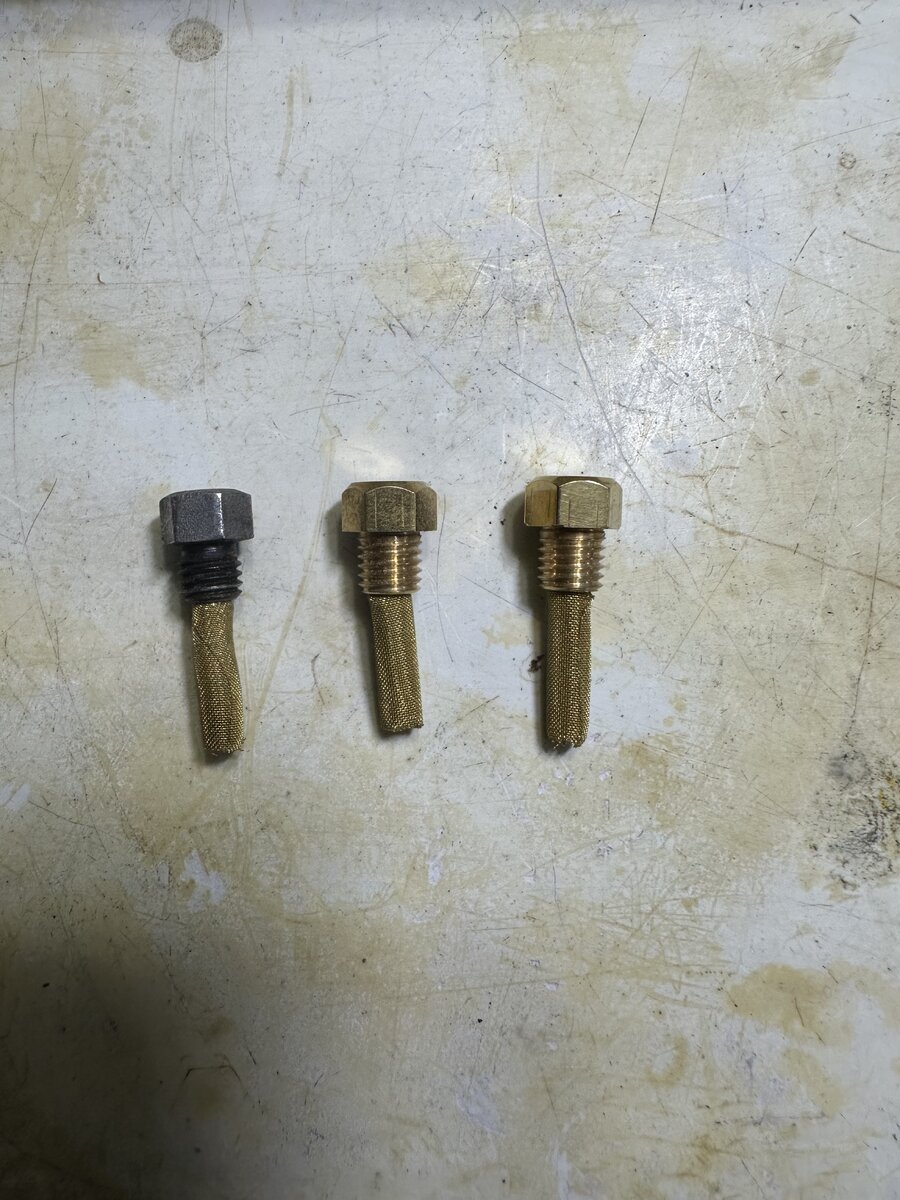

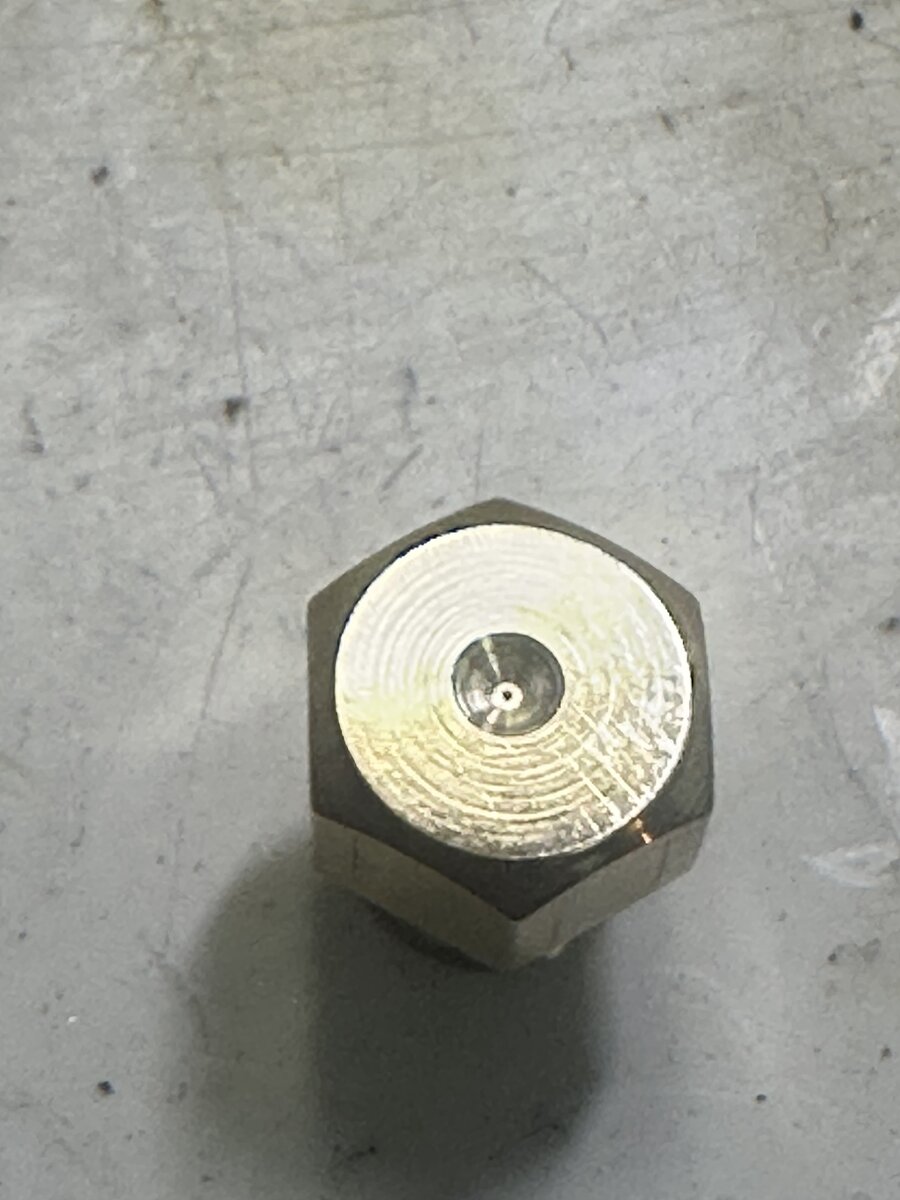

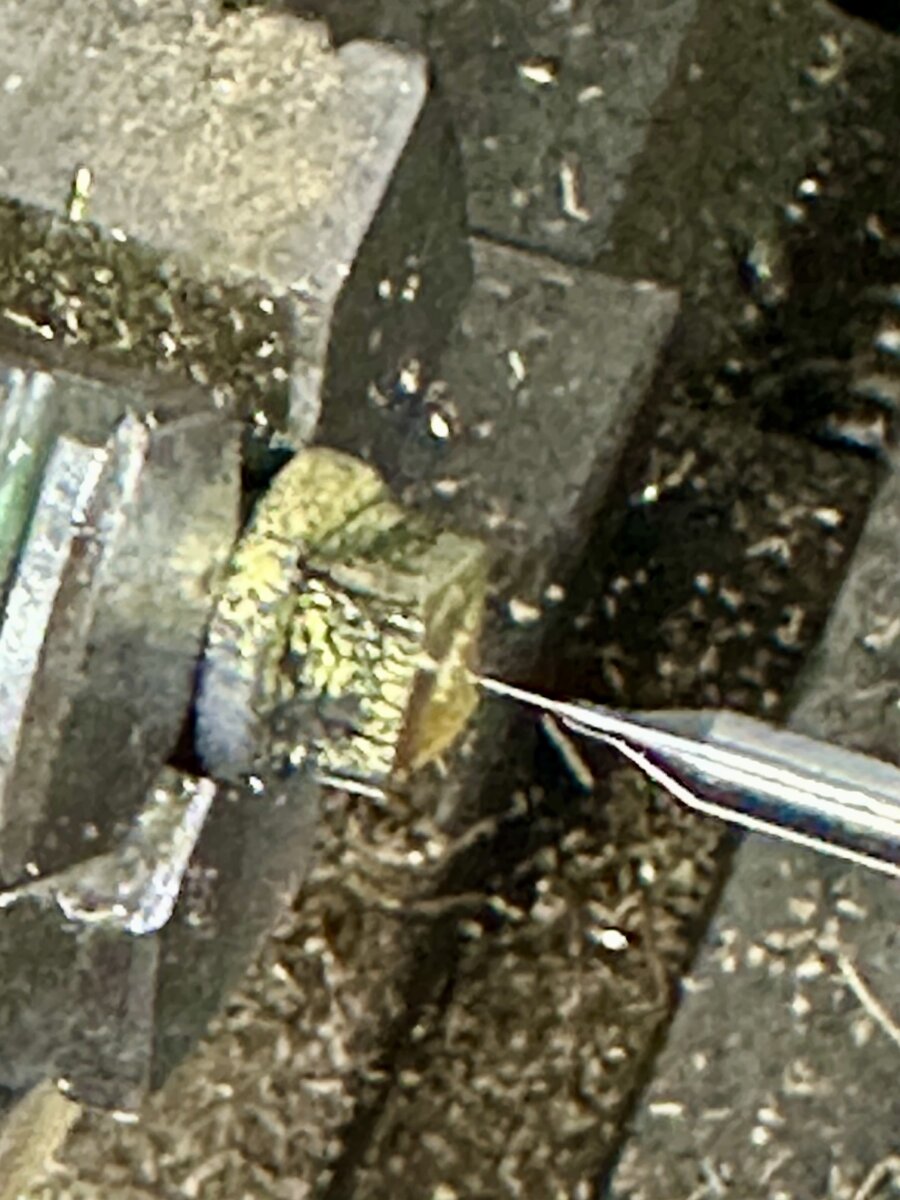

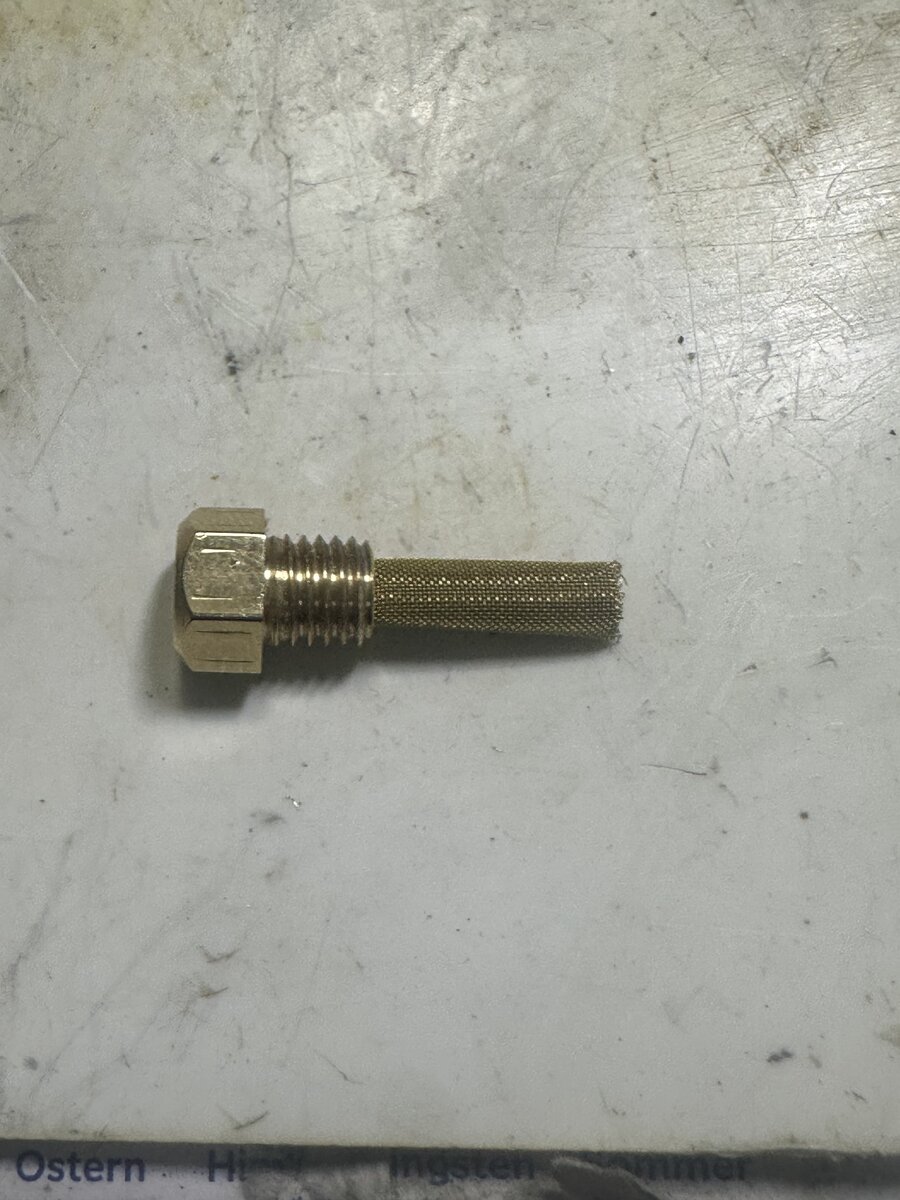

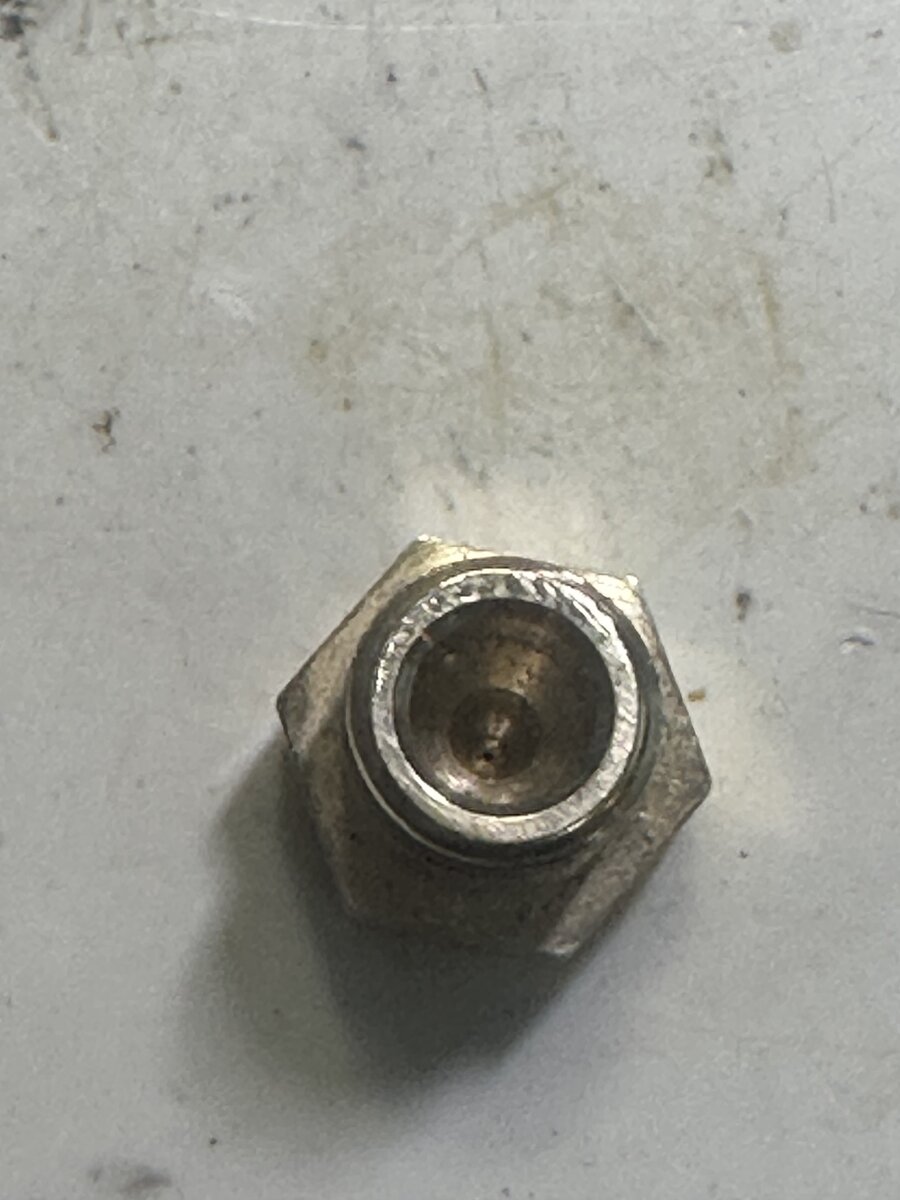

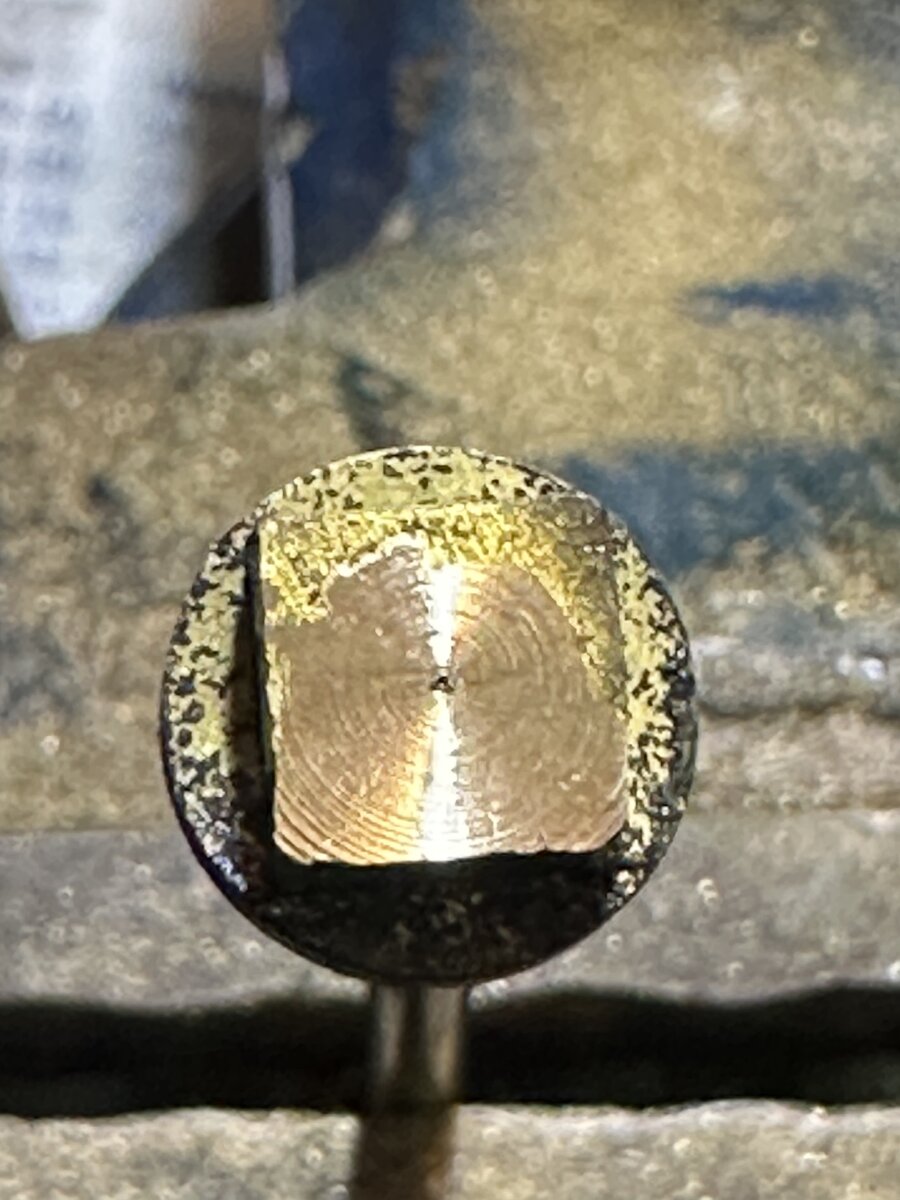

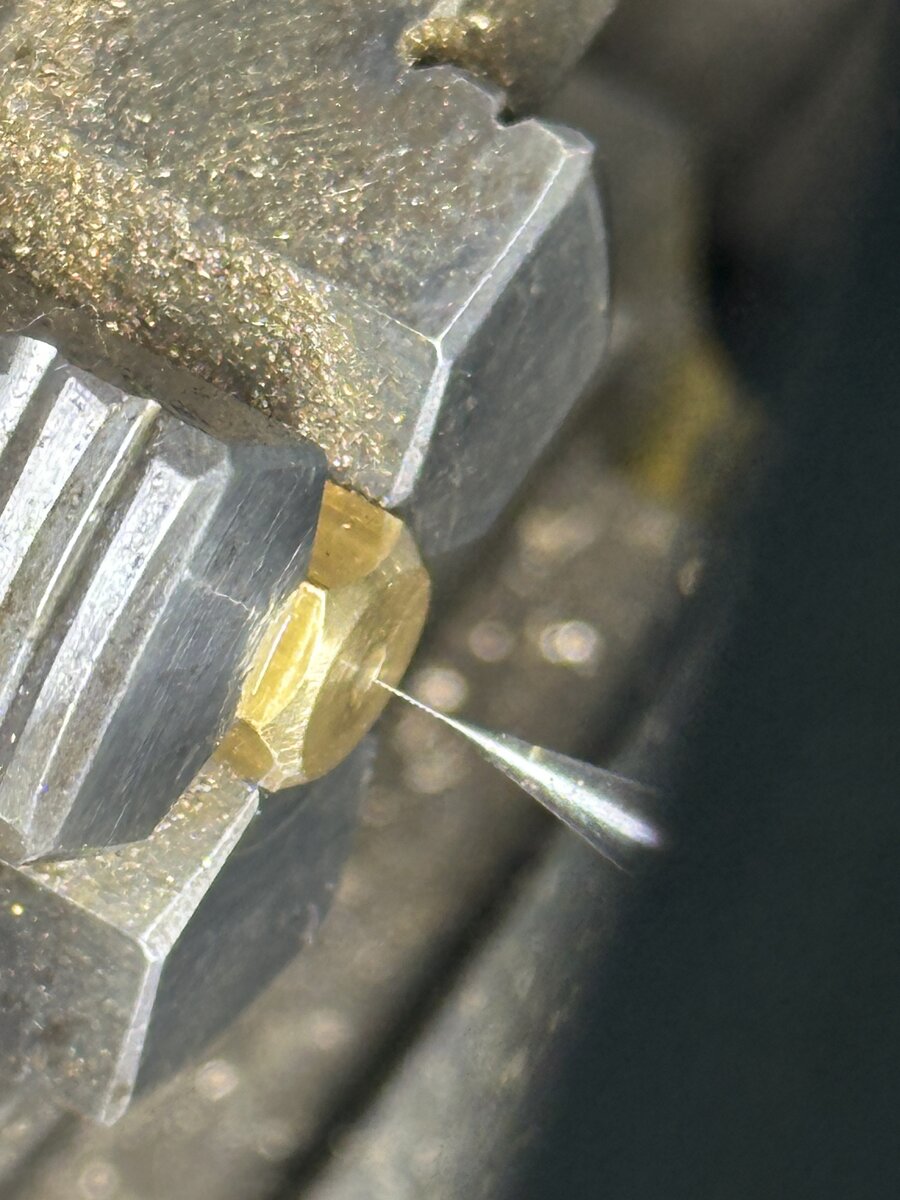

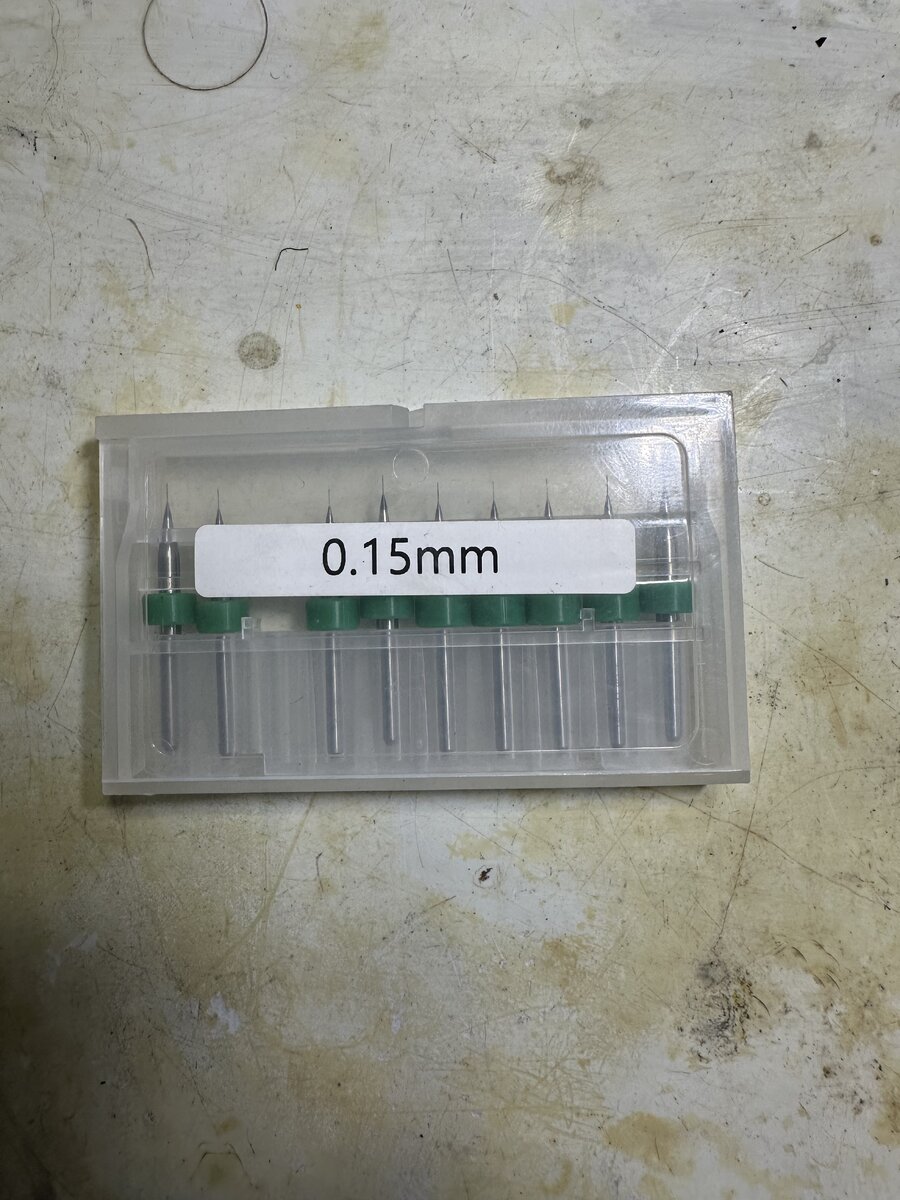

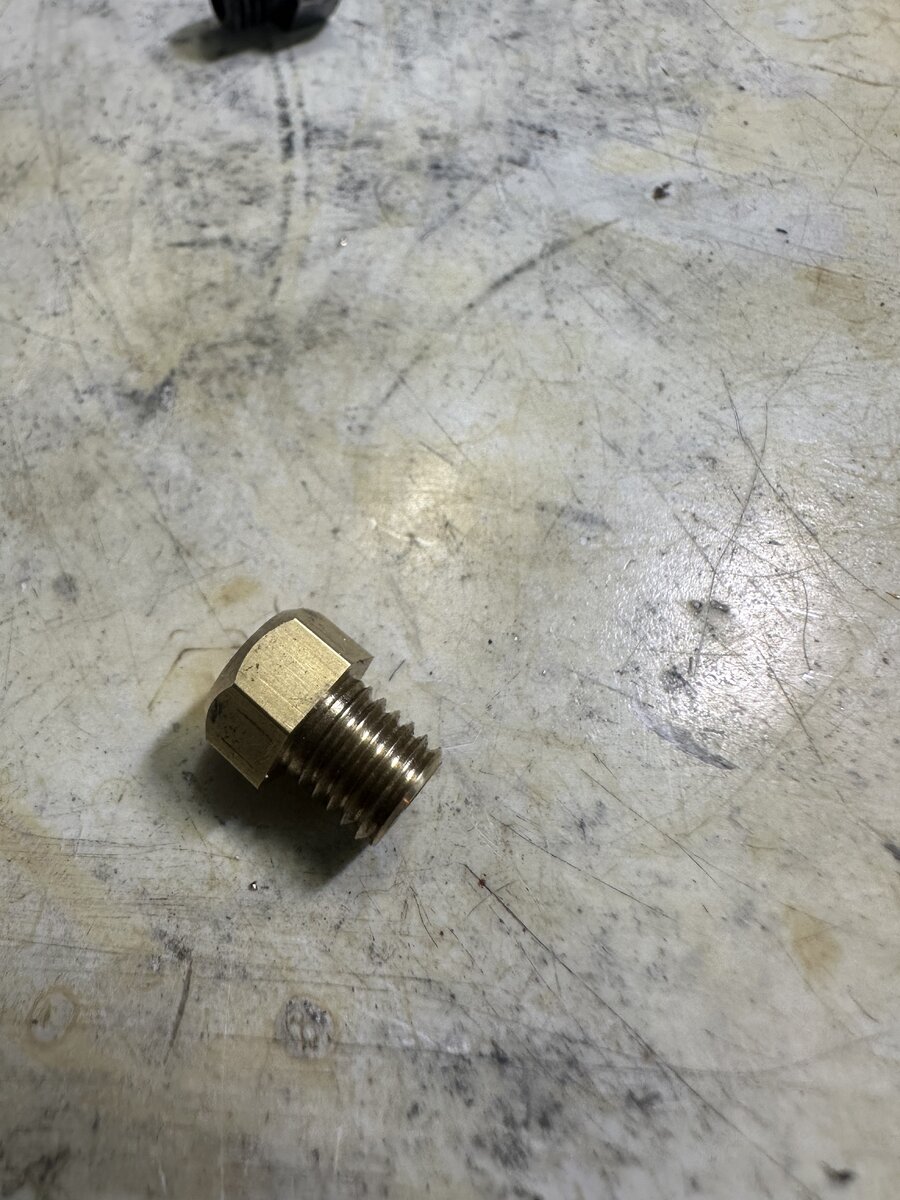

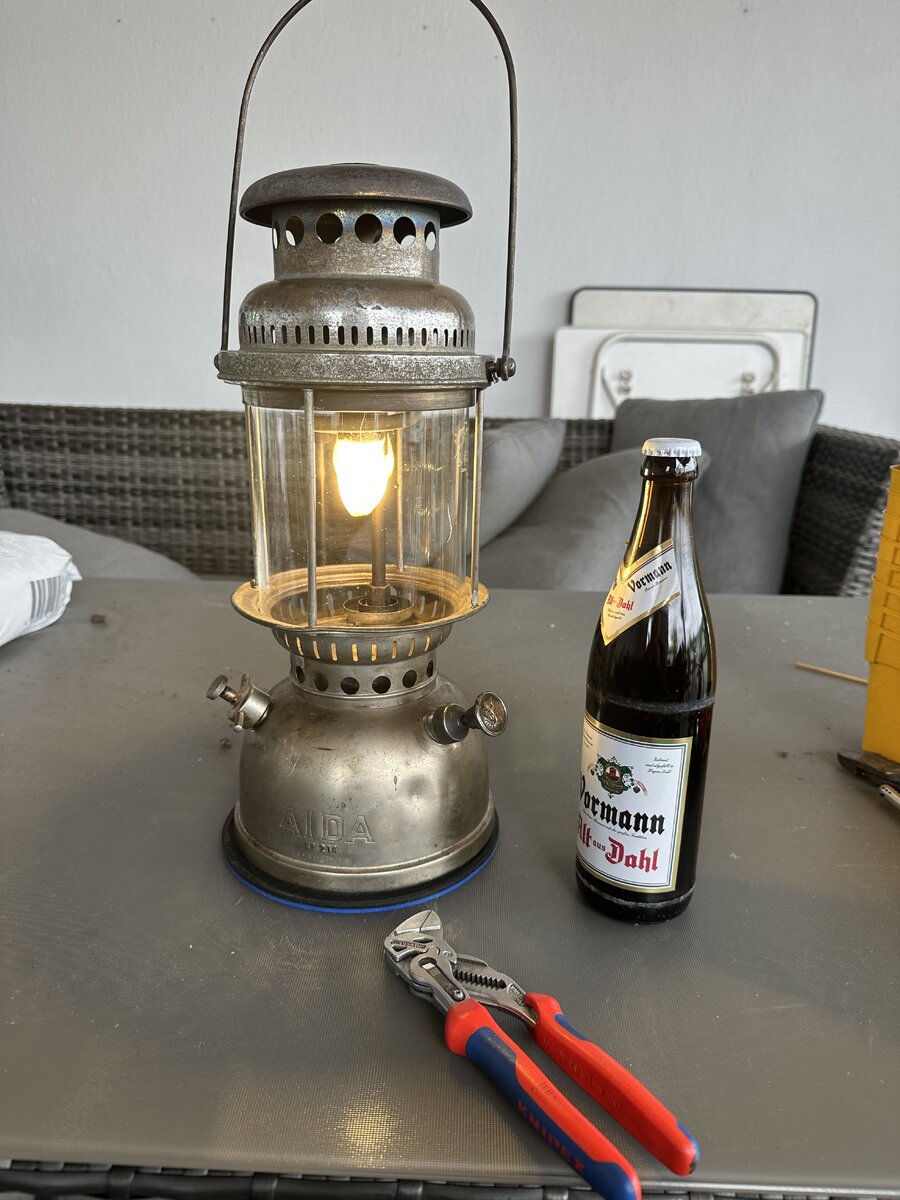

    I made a nozzle for a Petromax 834. The nozzle is turned from 9mm hexagon brass and drilled with a nozzle hole 0.16mm. The nozzle also has the classic needle aid, which is missing in today's nozzles from new production.

    Greetings Michael


    Attached Files:

    Atlan, Aug 16, 2026 at 11:55 AM
    #1

  2. Andrew T

    Offline
    Joined:
    Mar 1, 2016
    Messages:
    685
    Location:
    Port Elizabeth South Africa
    It looks good.
    It is nice when you have the ability to make obsolete parts and improve on them.

    Andrew T, Aug 16, 2026 at 12:12 PM
    #2
  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    16,871
    Location:
    Shetland Islands UK..
    :thumbup::clap::clap::thumbup:

    JEFF JOHNSON, Aug 16, 2026 at 2:45 PM
    #3
  4. Reinhard

    Reinhard Germany Subscriber

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    1,132
    Location:
    Germany

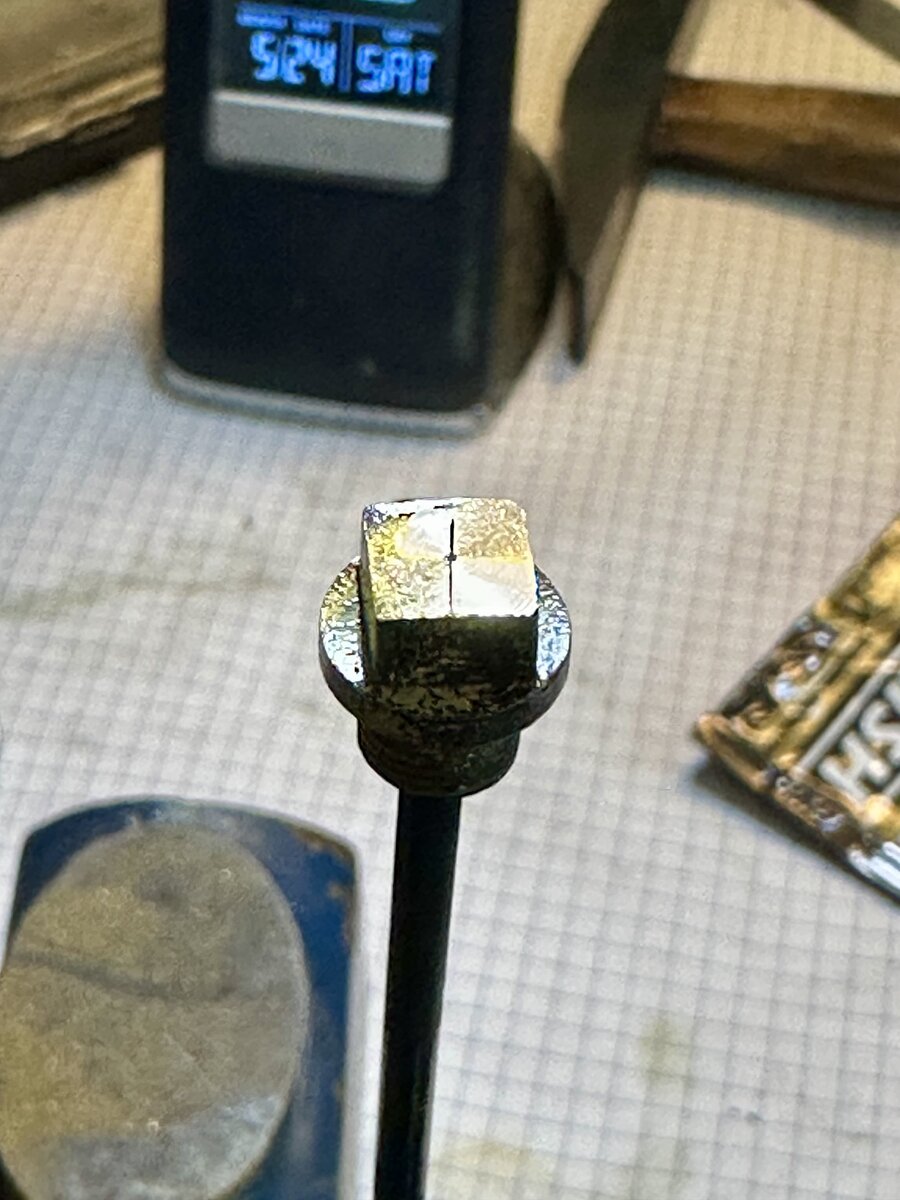

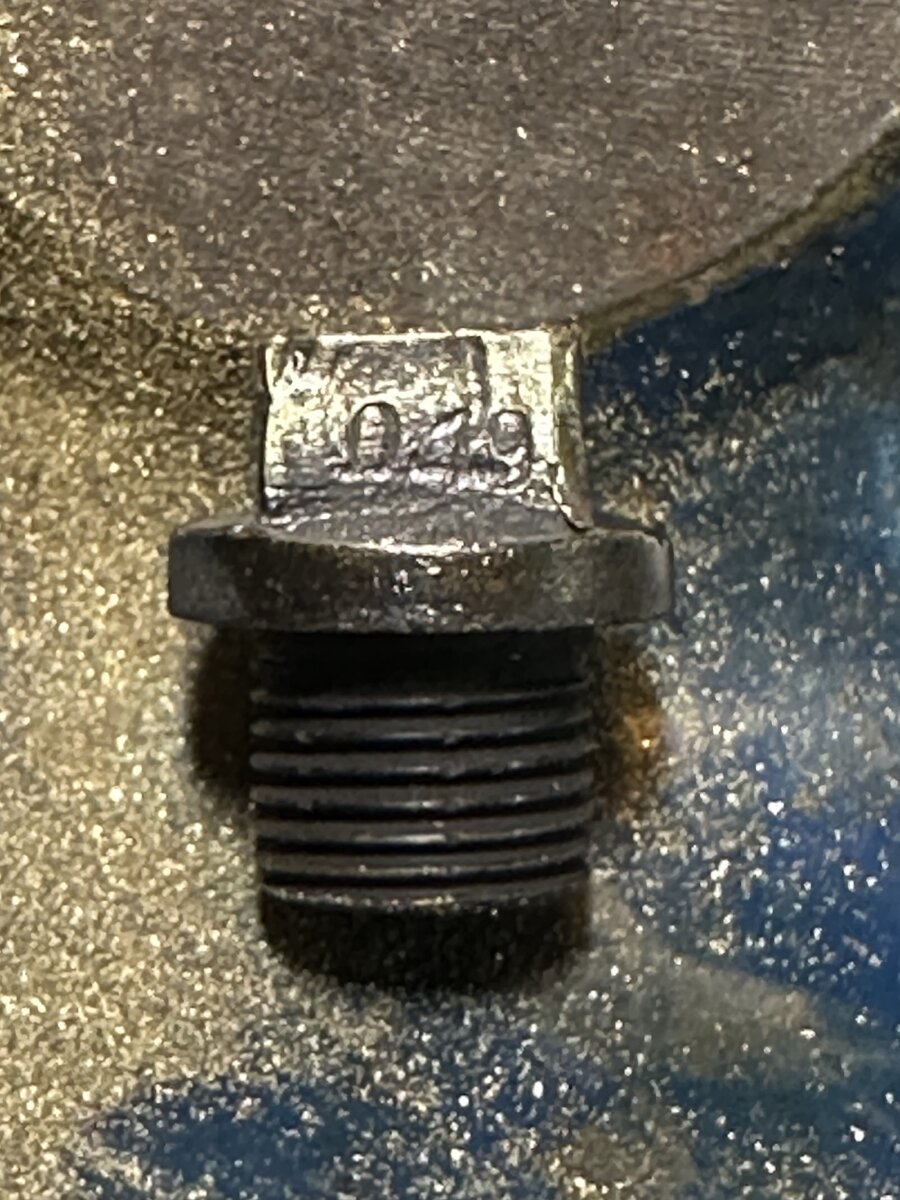

    The original nozzles for Petromax donut lamps were always made of iron , because the bases of these lamps were made of cast iron.

    Reinhard, Aug 16, 2026 at 9:16 PM
    #4
  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    4,422
    Location:
    Somersby, New South Wales, Australia
    Nice work :thumbup::thumbup:

    ROBBO55, Aug 16, 2026 at 10:06 PM
