Petromax(Graetzin 915H)

Petromax (Graetzin 915H).
From references http://tgmarsh.faculty.noctrl.edu/lantern/intllampeo.htm

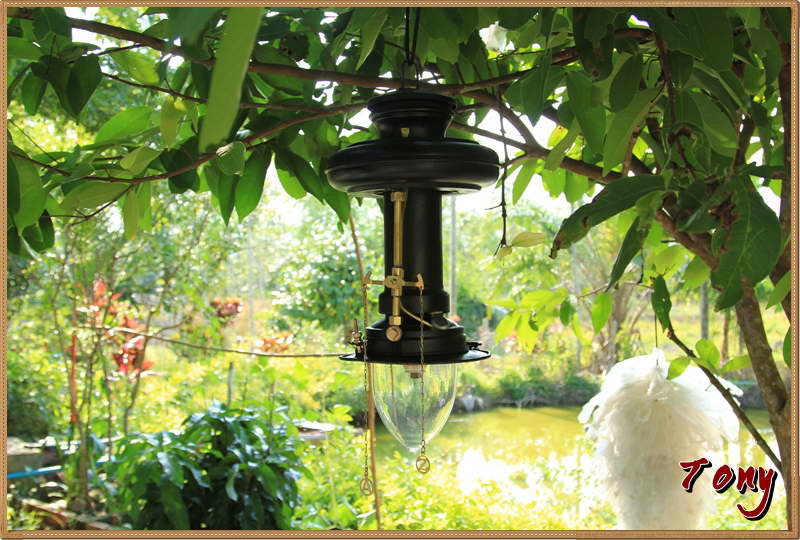

After completion of the adjustment. Minor repairs.
What's recommendations suggested.

Thank you.

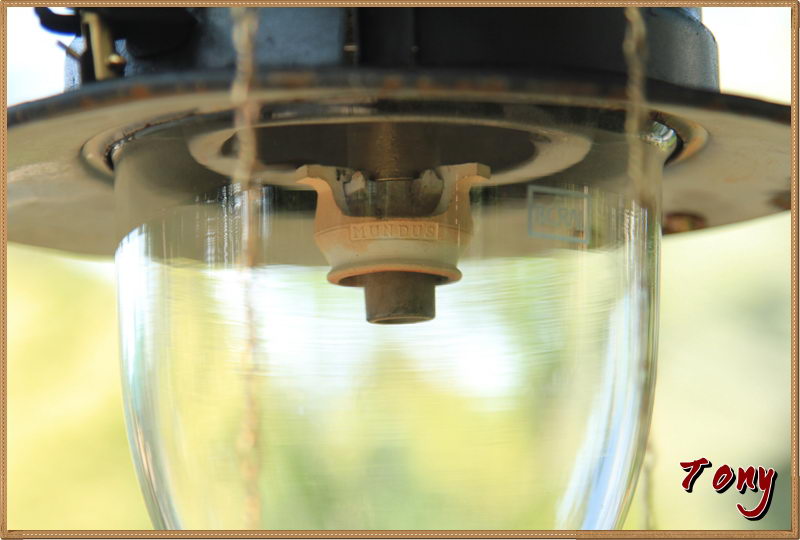

Nice condition but I can see that the globe you fitted there has a hole on the bottom end. I have one of these and, even if I still didn't light it, I made some research.

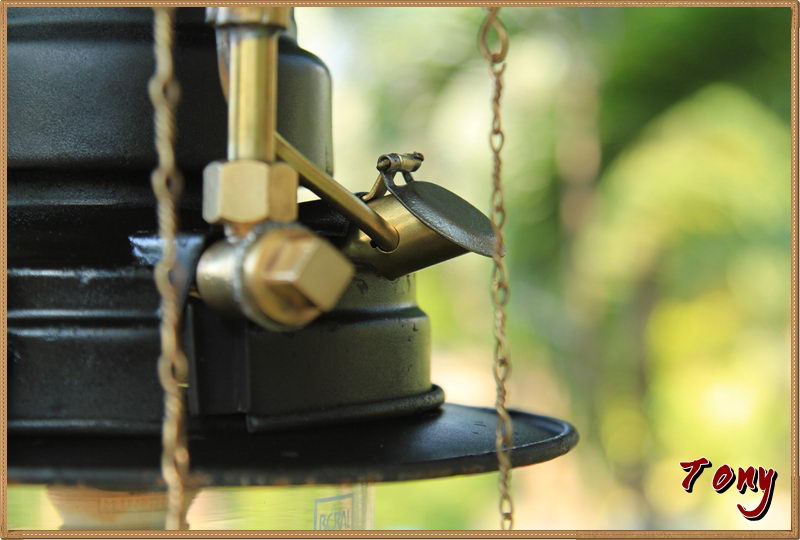

You need a completely closed globe on the outside and a second globe on the inside opener on both ends. There are three tags on the pre heat cuvette, visible on your pics, to attach the inner globe there and at least it will give you an idea of the globe diameter; I know that Wim Van der Welden adapted a Feuerhand globe for this.

I know that both globes, the external one close and the internal one open, generate a proper air flow from outside to inside and then through the chimney for the proper burner working.

Have a tour here: Link
Juan



And see this: Link



Hi juan.
First of all, thanks a lot for the good advice that is useful to me.
About globes. External and internal globe effect lighting.

I will try to find ideas. For instructions that you can tell me.

Thank you very much.



I found another good explanation on The Lamp Guild at www.lampguild.org . Go to the Q&A page and, on the archives, look for the #5677.



I am looking for information. As you suggested.
Thanks Juan.



In this link, BBL, you have another great example of a complete one with original glass globes.



Thanks.

I will follow up complete.

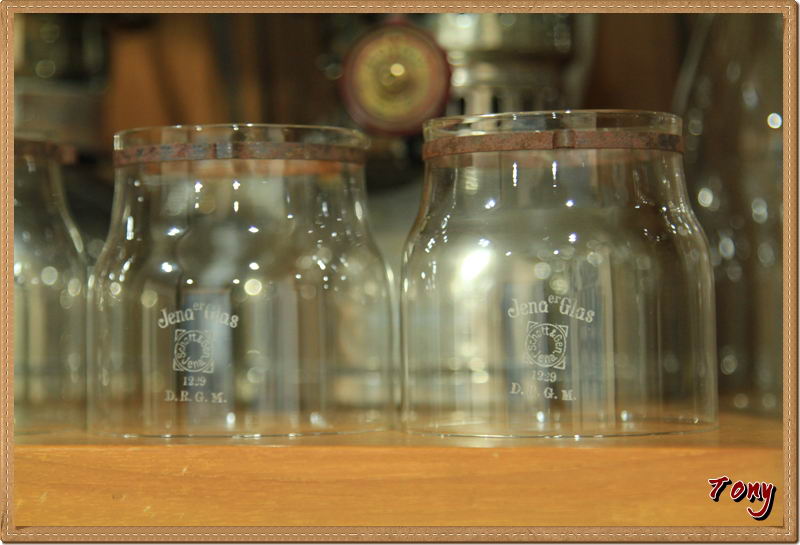

I think inner globe is this type.
and hard to find.

Thanks



hello Superman

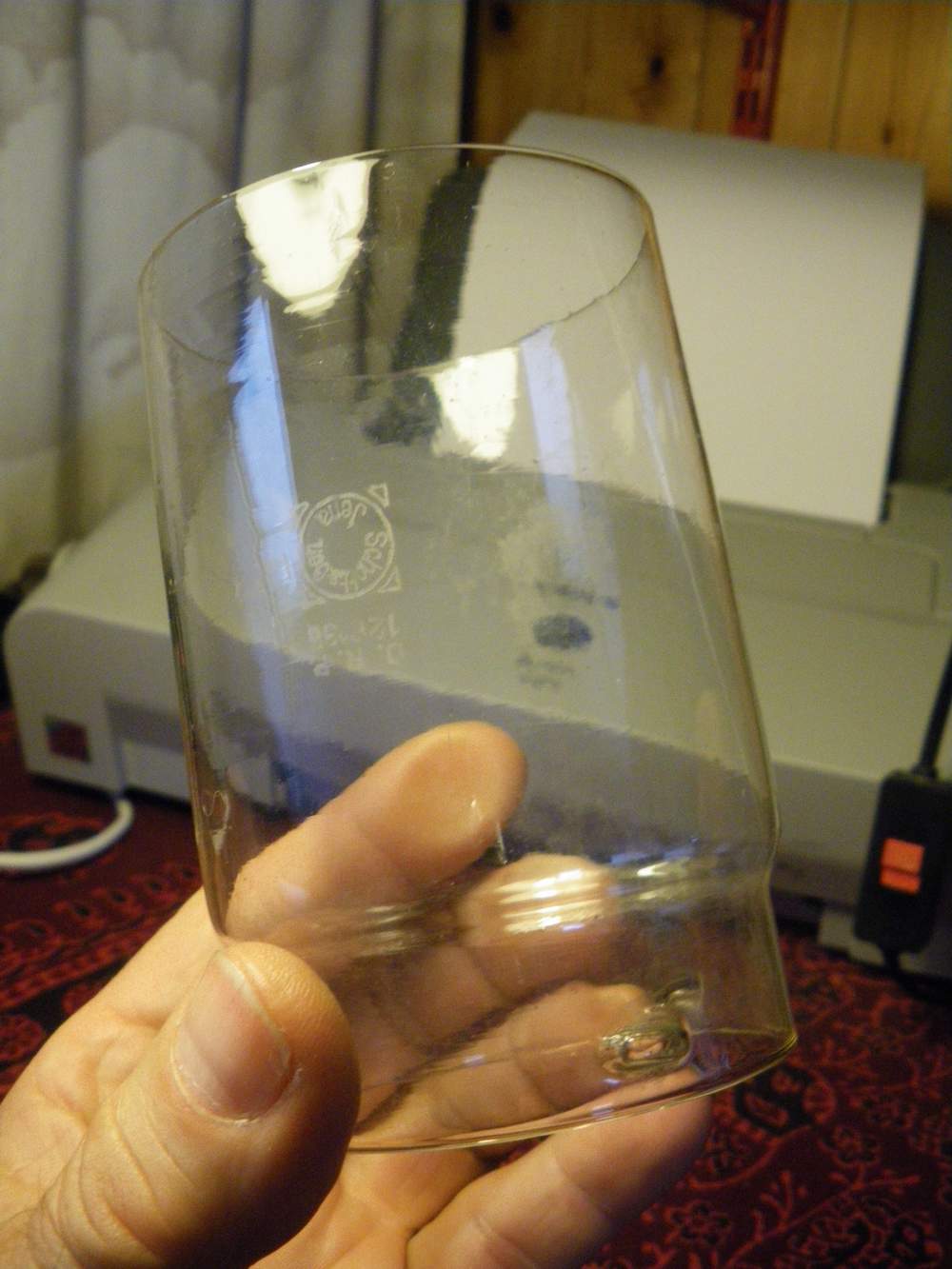

perhaps I have the glass who need ??



Hello Michel,

Wow!....This is difference glass other than that ever seen.

It look like longer.

Thank you for your guide to me.
