Tilley Overhaul Help

Discussion in 'Pressure Lamp Discussion Forum' started by bonza, Dec 21, 2023.

  1. bonza Australia

    Offline
    Joined:
    May 29, 2021
    Messages:
    96
    Location:
    Victoria, Australia

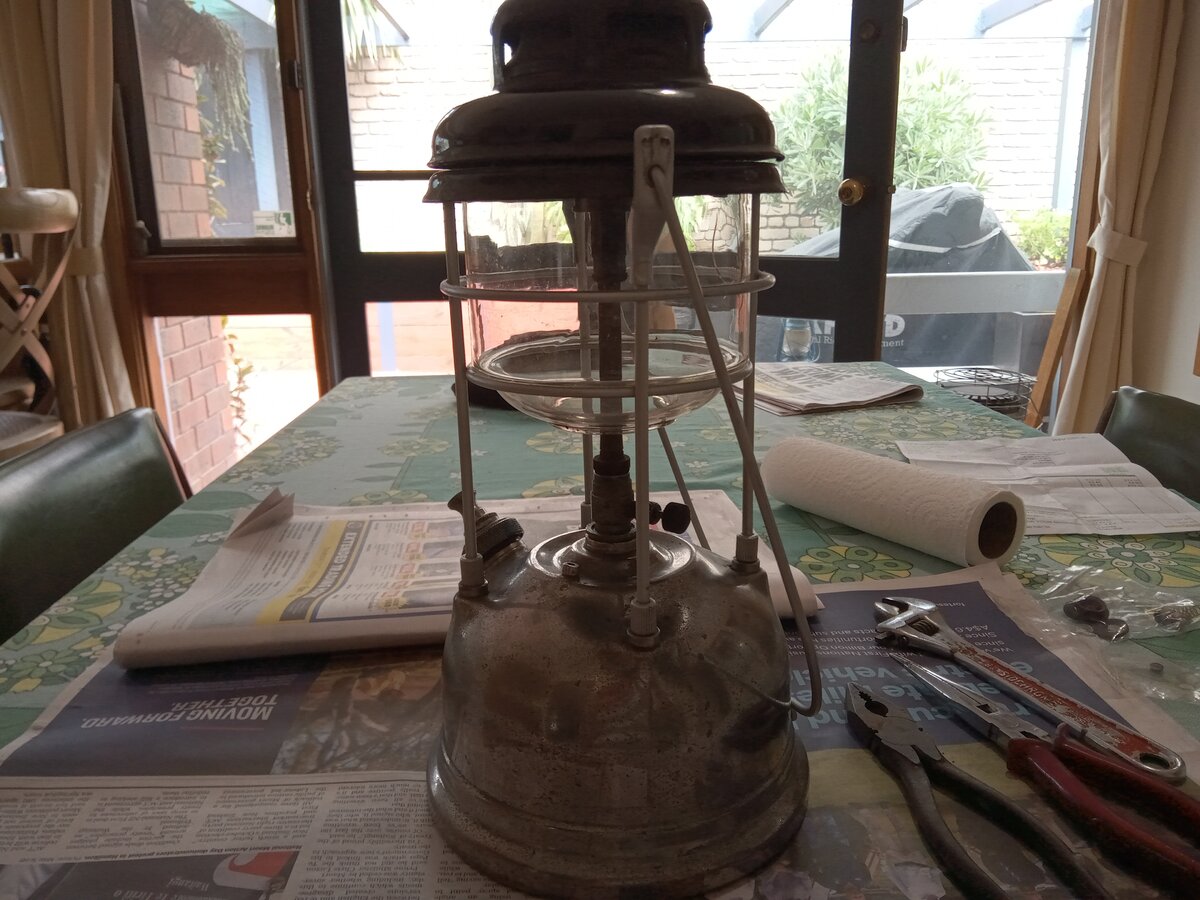

    I'm giving an old Tilley, circa 1950's I think, a birthday with new seals, a leather cup and have also replaced the hood that was full of holes.

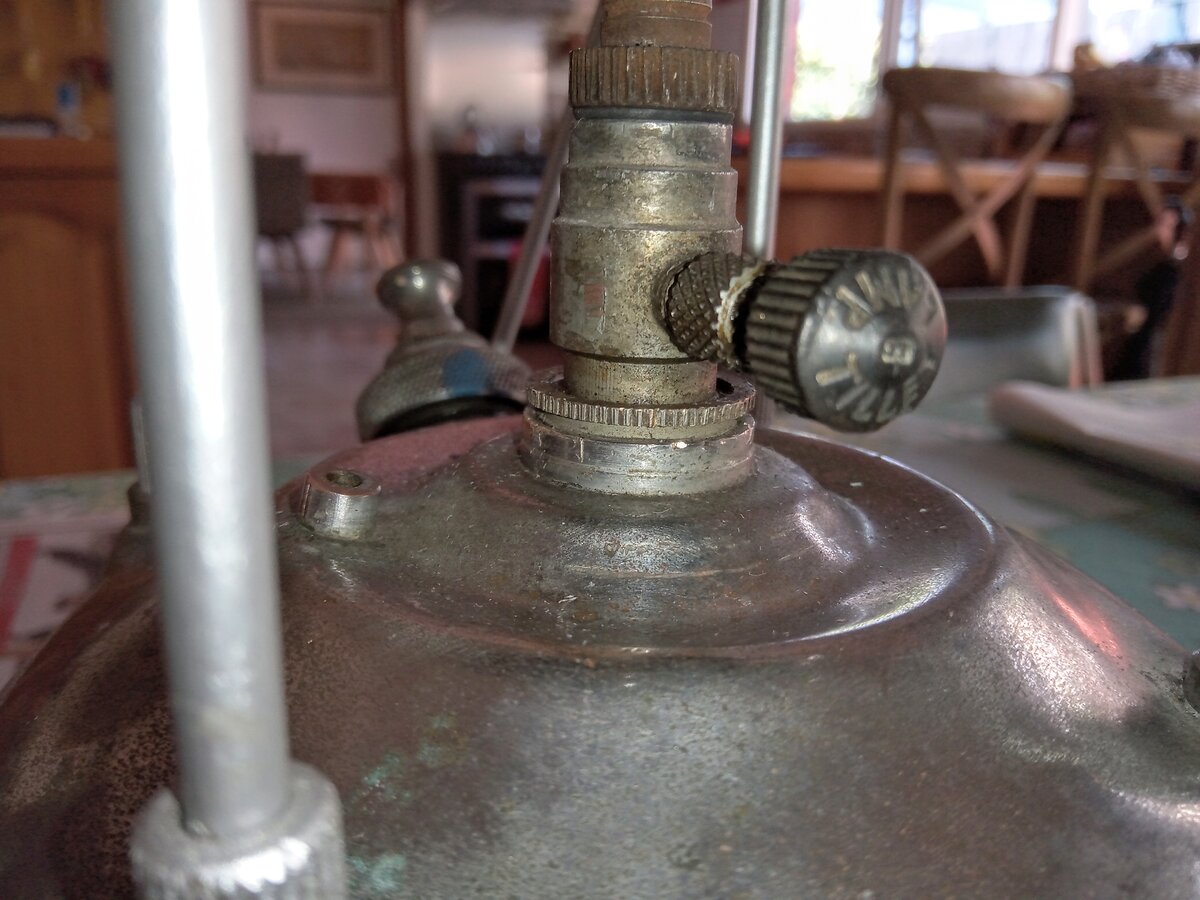

    all went well but what I'm struggling with is removing the bakelite knob from the control cock as it is super tight in order to replace the seal within the gland

    I don't want to break things with undue force so any advice from the experts would be much appreciated

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    11,053
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @bonza

    The bakelite knob unscrews anti-clockwise, but sometimes it is stuck tight.

    Use a small set of pliers to grip the shaft that the knob is screwed onto, then unscrew the knob. Sometimes you may have to wrap leather around the knob and grip carefully with pliers.

    Cheers

    Tony

  3. bonza Australia

    Offline
    Joined:
    May 29, 2021
    Messages:
    96
    Location:
    Victoria, Australia
    many thanks, I'll give that a go

  4. bonza Australia

    Offline
    Joined:
    May 29, 2021
    Messages:
    96
    Location:
    Victoria, Australia
    thanks Tony as that did the trick. :) I had no idea that the knob was a screw on.

    the lamp is now all re-sealed ready for a fire up and test tonight


  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    11,053
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    :thumbup:!

    Cheers

    Tony

  6. Fireexit1 United Kingdom

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    3,525
    Location:
    Brighton UK
    Nice birthday gift ! :clap:
