Tilley vaporiser

Discussion in 'Fettling Forum' started by javerjayal, Jul 5, 2023.

  1. javerjayal

    Offline
    Joined:
    Feb 25, 2018
    Messages:
    14

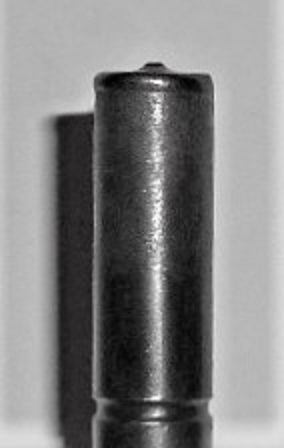

    friends I bought this tilley lamp recently and the vaporizer was clogged very seriously.
    You can remove the garbage with a 0.30 mm primus wire but the hole is enlarged.
    when I press it, a strong yellow flame comes out of the white shirt and the needle of said lamp is not enough to regulate because it has little wire.
    is there any solution?????
    In Uruguay it cost me a little more money to buy this lamp

    357618013_150865017960999_9072856243493511141_n.jpg 358336754_660367482806439_411267827657410040_n.jpg 358344670_808414907675255_6380319909881899865_n.jpg

    Last edited by a moderator: Jul 6, 2023
  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    16,895
    Location:
    Shetland Islands UK..
    I have found that lamp spares turn up in junk/antique shops and at auctions and at outdoor markets and car boot sales, those places are worth checking out.

  3. javerjayal

    Offline
    Joined:
    Feb 25, 2018
    Messages:
    14
    In Montevideo you can't get any of that

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    4,440
    Location:
    Somersby, New South Wales, Australia

  5. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    3,068
    Location:
    North Yorkshire
    0.3mm is definitely too big. The tip of a Tilley cleaning wire is only 0.2mm

    As quoted in the post above "it may not work but at least you'll have given it a shot." if this is the case, the lamp will need a new vapouriser (#606). If unavailable in Uruguay, Tilley lamp spares usually have spares but I see they are temporarily out of stock, however, they are available here Vaporiser - 5inch. As in most cases, it pays to shop around but be carefull if looking on eBay, most (but not all) vapourisers that are offered are used and may well be no better than the one you have.

  6. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    3,861
    Location:
    Malaysia
    Its unfortunate that the jet's orifice had been enlarged.
    If the chance of getting a new vaporizer is too slim or zero in Uruguay, you'll need to try whatever that was mentioned by Henry-- drop-peen the tip end to hopefully restore the orifice's diametre back to ~0.2mm.

    Note:- It is a Tilley vaporizer with a non-removable jet. It has a thin sheet metal tip/jet that was pressed-fit/formed intergral to the vaporizer. Unless you have the most delicate touch, it will not be easy to peen the jet the usual way, with a pin punch like most jets from other lantern brands without overdoing or depressing the tip end too much...ruining it further.
