Unknown Lantern/Stove Tool

Discussion in 'Open Forum' started by MantleMonger, Jan 2, 2023.

  1. MantleMonger United States

    Offline
    Joined:
    Dec 15, 2022
    Messages:
    21
    Location:
    Anderson SC
    20230102_135257.jpg Decided to post this on the open forum since I'm not entirely convinced this is actually lantern or stove related. Coleman fuel cap for scale. This came in a lot of Coleman and AGM parts I purchased last year. For all I know, it could just be a bicycle tool somebody threw in the lot. The wrenches do fit various bits on Coleman 220 style lanterns, but I don't have any other brands to test it on. I'm curious what purpose of the hole in the middle is for too. Anyways, just wanted to hear what you guys think it is.
    Thanks,
    Ethan

  2. Tony Press

    Tony Press Netherlands Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    11,101
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @MantleMonger

    It is a Coleman wrench. Part No. 605-590.

    Tony

  3. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    1,301
    Location:
    Victoria, Australia
    Re what the hole/slot in the tool is for I cannot be definitive. However, about 1985, when I got my Coleman 228B lantern the tool was attached to the ventilator with this hole/slot and the ball nut was holding it on.

  4. Tony Press

    Tony Press Netherlands Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    11,101
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    The “hole/slot” is a small adjustable spanner. Slide it over the small part until it bites.

    Tony

  5. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    1,062
    Location:
    Gujan-Mestras - Gironde - France
    This is the same operating principle as the sail shackle

  6. Cottage Hill Bill

    Offline
    Joined:
    Sep 5, 2012
    Messages:
    335

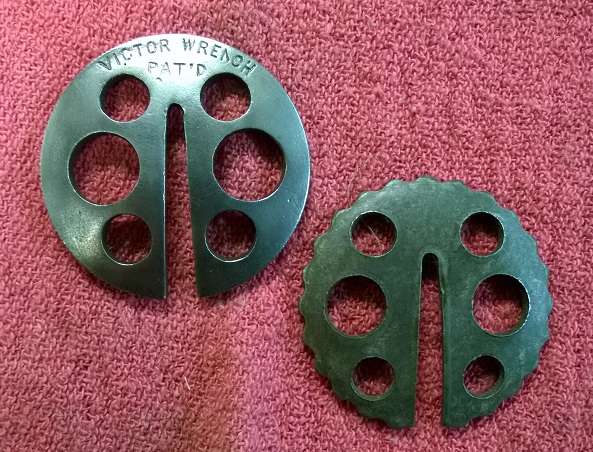

    The slot in the center is for removing the jet from the generator. As Tony said it's a variable wrench. It works like a bicycle spoke wrench. These are two of my great-grandfather's spoke wrenches. One stays in my fettle box for removing jets, that way I don't have to dig through the pile of lantern wrenches to find one like yours.
    Bicycle wrenches.jpg
